86 21... Removing roof railing: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The text describes how to remove the roof railing at one mounting point as an example. Proceed in the same way for the other mounting points.

Open cover (1) and fold down.

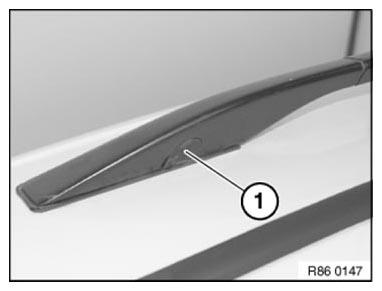

Fig 1: Identifying Cover
G06886921Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

After releasing three retaining screws, lift off roof railing (2).
