52 26... Removing and installing release unit trim

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Access to screw (1) behind release lever.

Release screw (1).

Unclip trim towards top.

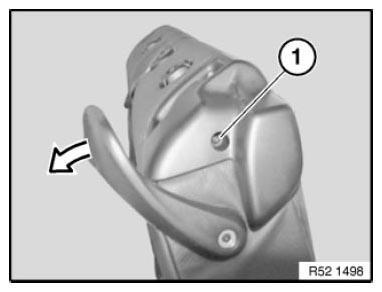

Fig 1: Identifying Release Lever Screw
G08529846Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs must not be damaged.

If necessary, replace trim.

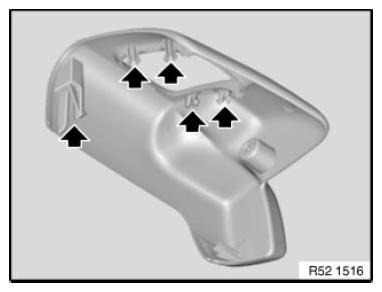

Fig 2: Locating Retaining Lugs
G08529847Courtesy of BMW OF NORTH AMERICA, INC.
