2354981 Riveting tool

NOTE: For opening the top timing chain during the exchange (included in tool set 2 354 985). Consisting of: 2354983 basic body (1) 2354984 spindle (2)

SI number:

01 24 13 (990)

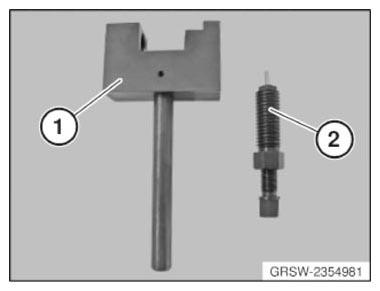

Fig 1: Identifying Riveting Tool (2354981)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 2354983 Basic body

NOTE: For opening the timing chain on exchange (included in tool set 2 354 985).

2 = 2354984 Spindle

NOTE: Pressure spindle for opening the timing chain on exchange (included in tool set 2 354 985).
