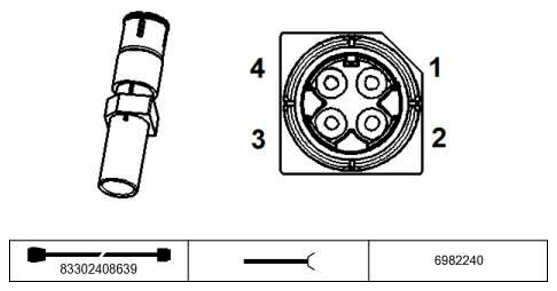

Combox X34134 Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector X34134
| Pin |
Type |
Description /Signal type |
Connection /Measuring notes |
| 0 |
M |
Shielding |
AUX-IN connection |
| 1 |
M |
USB ground |
AUX-IN connection |
| 2 |
E/A |
USB data signal |
AUX-IN connection |
| 3 |
A |
USB voltage supply |
AUX-IN connection |
| 4 |
E/A |
USB data signal |
AUX-IN connection |
