Note: For removing rotary shaft seal from timing case cover

Engine: M41, M47, M50, M51, M52, M52TU, M54, M56, M60, M62, S50B30, S50B32, S54, S62, W10, W11

Storage location: A38, C25

SI number: 1 05 92(507)

Order number: 11 2 380

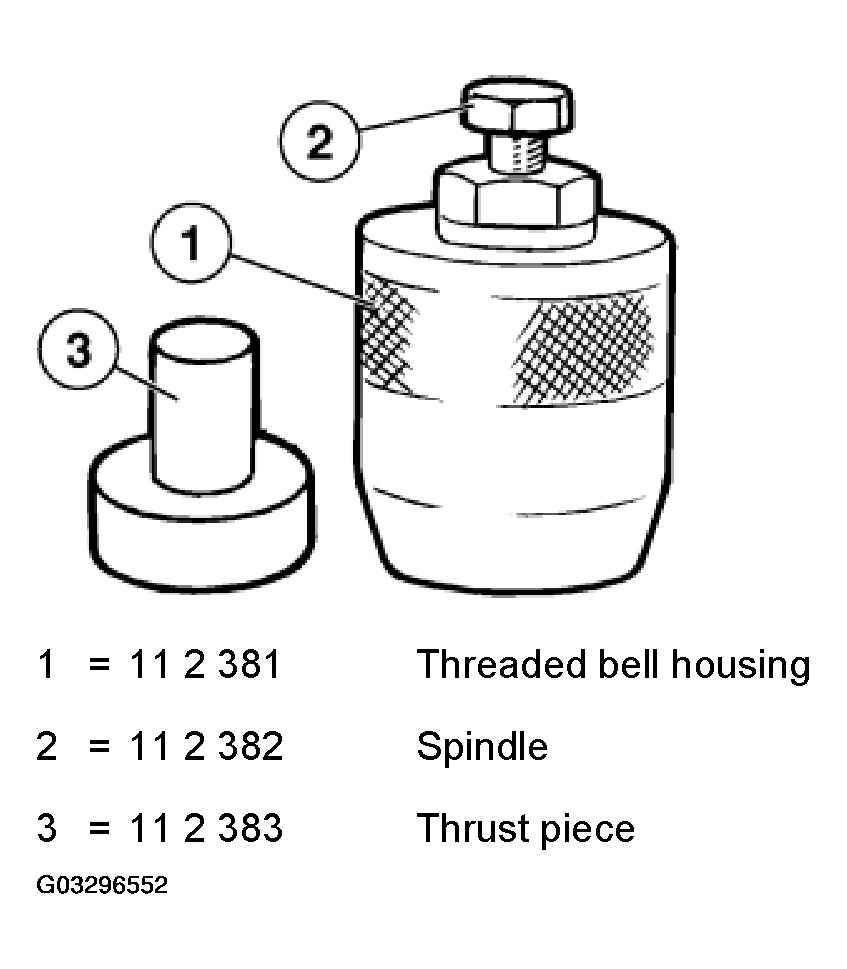

Fig 1: Identifying Puller

Courtesy of BMW OF NORTH AMERICA, INC.

Puller

Consisting of:

1 = 11 2 381 Threaded bell housing

2 = 11 2 382 Spindle

3 = 11 2 383 Thrust piece

Note: Engine: M41, M47, M50, M51, M52, M60, M62, PENT

11 2 384 Thrust piece

Note: Engine: S50, S54

11 2 385 Spacer bushing

Note: Engine: M41, M50, M51, M52

11 2 386 Thrust piece

Note: Engine: S62
