2214015 Adapter cable

Minimum set: Measuring and testing equipment MP

NOTE: 48-pin V adapter cable for diagnostic work on the engine control unit MEVD 17.2.2, camshaft sensor, crankshaft sensor. To be used only in connection with adapter 83 30 2 360 906 (from 09/2014).

SI number:

02 02 11 (707)

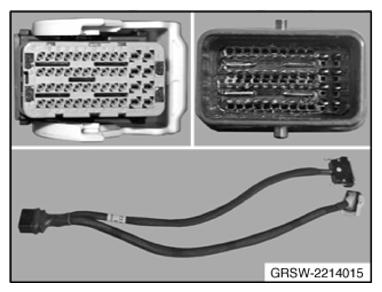

Fig 1: Identifying Adapter Cable (2214015)
G09995855Courtesy of BMW OF NORTH AMERICA, INC.
