F56 ENGINE AND INJECTOR TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 12 14, Date of Issue: December 2014

MINI:	F56 (Cooper)
GROUP:	Tools and Equipment

F56 Engine and Injector Tools

Distribution of the following tools will be through the Automatic Tool Shipment Program.

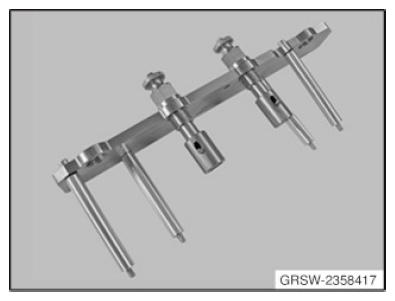

Injector Tool

B38/B48 Engine

Order P/N 83 30 2 358 417

For removal and installation of the fuel injectors. Refer to ISTA Repair Instruction 13 53 318 for full details.

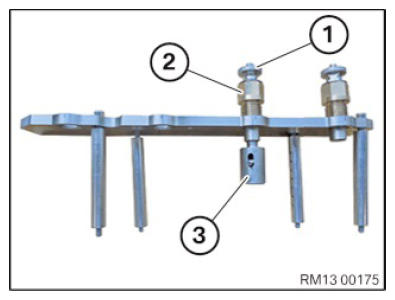

Special tool 2 358 417 consists of:

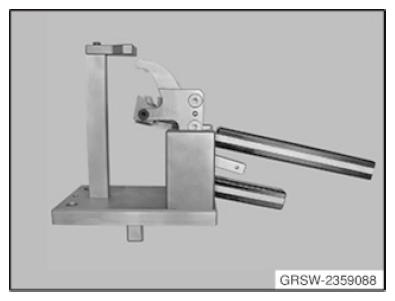

Torsion Spring Tool

B38/B48 Engine

Order P/N 83 30 2 359 088

For removal and installation of the torsion spring of the intermediate shaft lever.

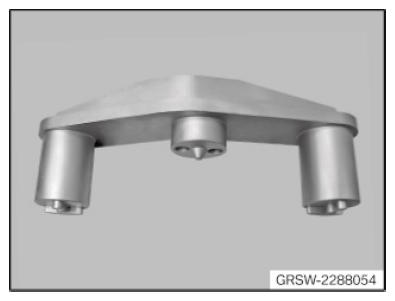

Counterbalance Fixture

B38/B48 Engine

Order P/N 83 30 2 288 054

For proper positioning of the counterbalance shafts during installation. Refer to ISTA Repair Instruction 11 27 030 for full details.
