61 13... Unlocking and disconnecting different plug connections

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Pressing Lock And Open Clip In Direction Of Arrow

G04727424

Courtesy of BMW OF NORTH AMERICA, INC.

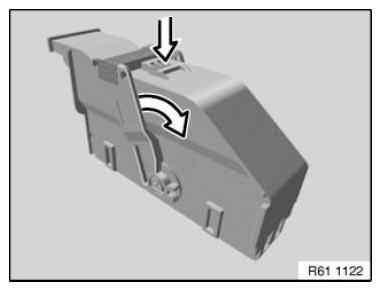

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Pressing Lock And Open Clip

G06979807

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection

G04727426

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Disconnecting Plug Connection

G04727427

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Disconnecting Plug Connection

G04727428

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Disconnecting Plug Connection

G04727429

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Disconnecting Plug Connection

G04727430

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Disconnecting Plug Connection

G04727431

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Disconnecting Plug Connection

G04727432

Courtesy of BMW OF NORTH AMERICA, INC.
