41 61... Checking hood hinge
Necessary preliminary work
- Remove hood hinge. See REMOVING LEFT HINGE or REMOVING LEFT OR RIGHT HINGE (ACTIVE PEDESTRIAN PROTECTION) .

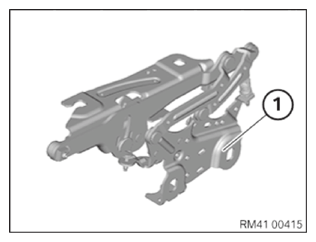

Open and close hinge (1).
Visual inspection for damage.
| Test result | Measures |
|---|---|
| Hinge is stiff | Replace hinge |
| Visible damage | Replace hinge |
