F56 COOPER ENGINE TOOLS
TECHNICAL SERVICE BULLETIN
| MINI: | F56 (MINI Cooper) |
| GROUP: | Tools and Equipment |
SUBJECT
F56 Cooper Engine Tools
SITUATION
Distribution of the following tools will be through the Automatic Tool Shipment Program. All prices in this bulletin are introductory prices at the time of publication.

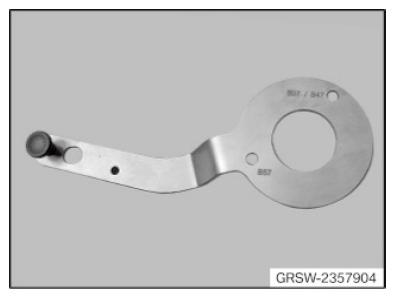

Alignment Gauge
B38, B48 Engine
Order P/N 83 30 2 357 904
Use to position the high-pressure pump in relation to the crankshaft.

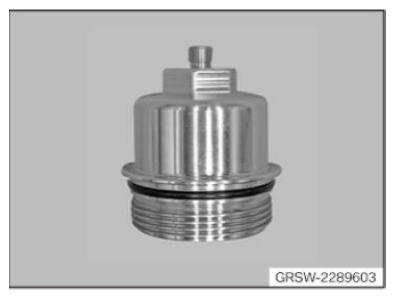

Oil Filter Housing Adapter
B38, B48 Engine
Order P/N 83 30 2 289 603
Use to measure the oil pressure at the oil filter housing.

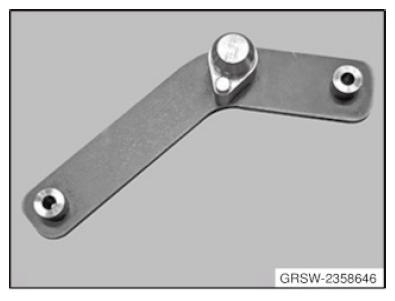

Positioning Gauge
B38 Engine
Order P/N 83 30 2 358 646
Use to properly position the counterbalance shafts.

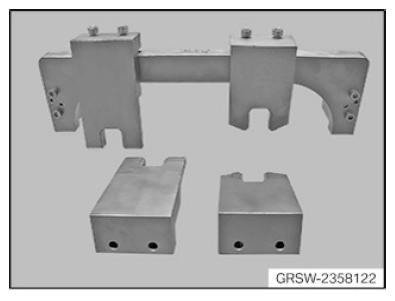

Camshaft Gauge
B38/B48 Engine
Order P/N 83 30 2 358 122
Use to lock the camshaft at the TDC.

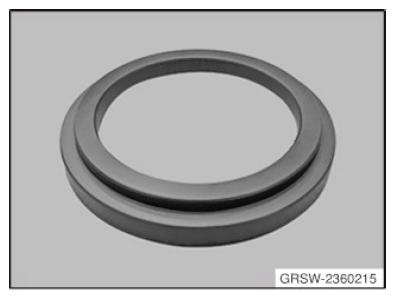

Seal Adapter
B38/B48 Engine
Order P/N 83 30 2 360 215
Use to install the rear radial shaft seal.

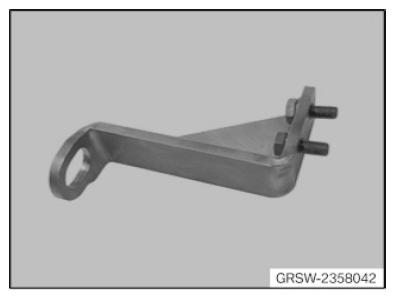

Engine Bracket
B38 Engine
Order P/N 83 30 2 358 042
Use to assist in the removal and installation of the engine.
