Cooper Paceman Base, Standard Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Connector End Views (R61)
›
Connector End Views
›
X62101 Connector End View
X62101 Connector End View

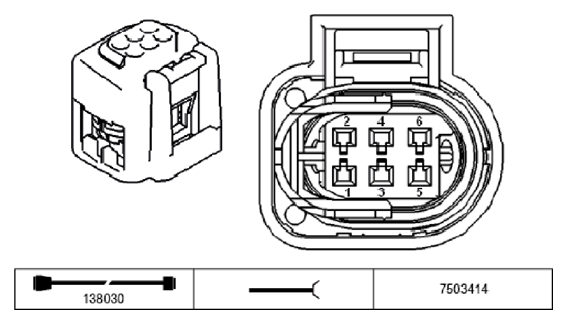

Fig 1: X62101 Connector End View
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
