Engine identification

Engine number at the marked surface.

Replacement drives are already assigned a number containing the identification and engine number at the factory.

The old drive number must be imprinted for replacement crankcases.

Magnesium crank cases feature a label, the engine number does not need to be embossed.

N12/N13/N14/N16/N18

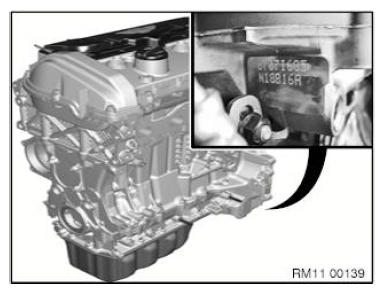

Fig 1: Identifying Engine Identification Mark - N12/N13/N14/N16/N18
G11006657Courtesy of BMW OF NORTH AMERICA, INC.
