Remove trailing link
Remove trailing link

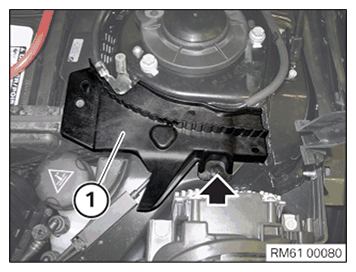

Loosen expanding rivet (arrow).
Remove the mounting for the gasket (1).
Courtesy of BMW OF NORTH AMERICA, INC.

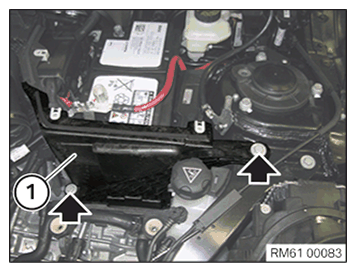

Release screws (arrows) and remove tension strut (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
