Fastening the engine pendulum support

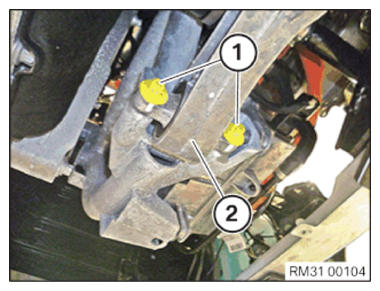

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Engine pendulum support to component carrier
M 12x100	tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

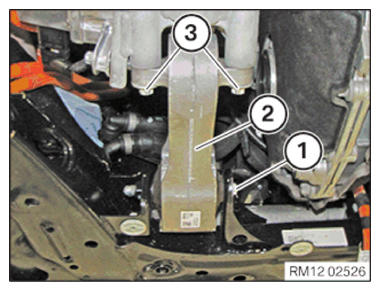

Tighten the screws (3).

TIGHTENING TORQUES SPECIFICATION

Engine pendulum support to component carrier
M 12x100	tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Engine pendulum support on front subframe
M12
	100 Nm
