Remove impact absorber
Remove impact absorber

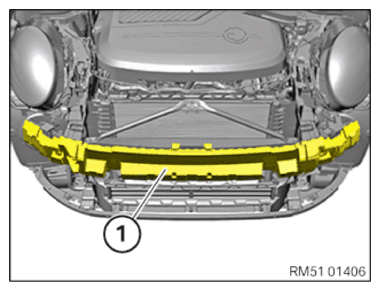

Remove the impact absorber (1) from the support for the bumper cover.
Courtesy of BMW OF NORTH AMERICA, INC.

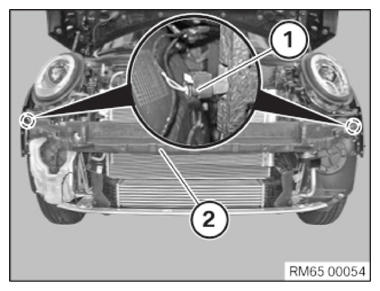

Unlock and disconnect connector 1.
Remove the impact absorber 2.
Courtesy of BMW OF NORTH AMERICA, INC.

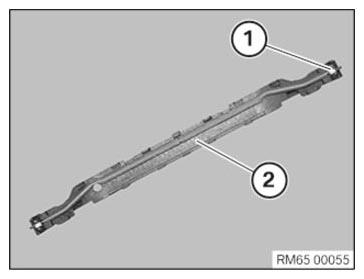

Remove pedestrian protection sensor 1 from impact absorber 2.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
