Remove side center console trim panel

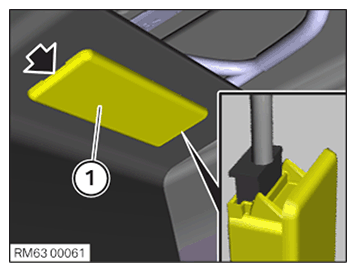

Lever out the footwell light (1) at the marked position with the special tool 0 493 681 (64 1 020).
Disconnect the associated plug connection and remove the footwell light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

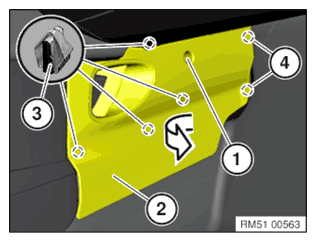

Loosen screw (1).
Release side center console trim panel (2) from retaining clips (3).
Feed out side center console trim panel (2) from guides (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
