Removing right headlight

NOTE: Only perform the operation on the right side.

Remove headlight

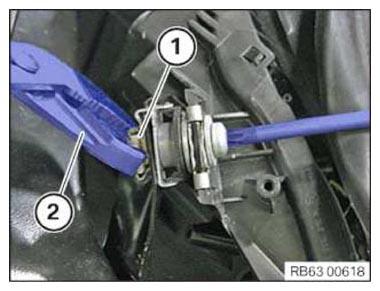

If the screw is stuck: Counter-hold the square nut (1) on the adjusting element with water pump pliers (2).

Courtesy of BMW OF NORTH AMERICA, INC.

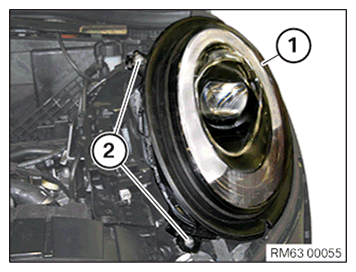

Unscrew screws (2) on the headlamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

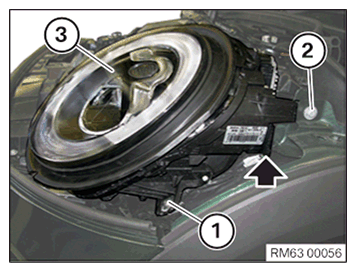

Unlock and disconnect the connector (arrow) on the headlight (3).
Unclip cable bracket from headlamp (3).
Loosen screws (1) and (2).
Remove headlamp (3).

Courtesy of BMW OF NORTH AMERICA, INC.
