Install clutch

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Handle clutch disc carefully and install surfaces of the clutch disc in the correct orientation.
Clean friction surfaces of the flywheel and the pressure plate with BMW-approved brake cleaner.
Note designation for "engine side"/"transmission side"!

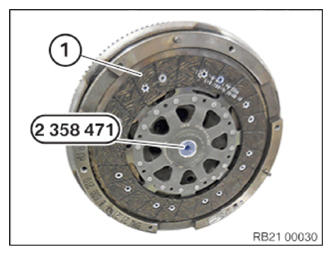

Center the clutch disc (1) with special tool 2 358 471.

Courtesy of BMW OF NORTH AMERICA, INC.

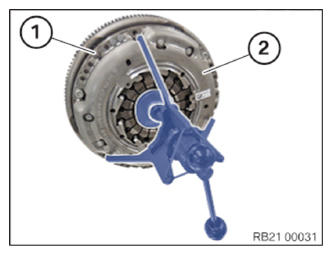

Attach the clutch (2) to the flywheel together with the special tool.
Fix the clutch (2) with the dowel pins (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the bolts (arrows).
Parts: Screws

Install and tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Clutch to flywheel
M8 Replace screws.	Joining torque	15 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the spindle (2) until the diaphragm spring (1) is completely relieved of pressure.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the knurled screw (1) and remove the special tool 0 493 839 (21 2 170) with 2 288 165 from the clutch.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the bolts (arrows).
Parts: Screws

Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Clutch to flywheel
M8 Replace screws.	Joining torque	15 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

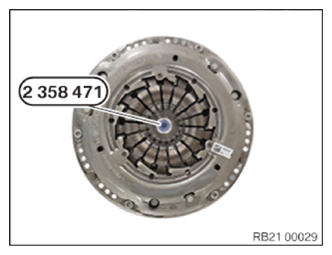

Withdraw special tool 2 358 471 from clutch disc with aid of accompanying screw.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

Center the clutch disc (1) with the special tool 2 358 471.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the clutch (2) to the flywheel together with the special tool.
Fix the clutch (2) with the dowel pins (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the bolts (arrows).
Parts: Screws

Install and tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Clutch to flywheel
M8 Replace screws.	Joining torque	15 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the spindle (2) until the diaphragm spring (1) is completely relieved of pressure.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the knurled screw (1) and remove the special tool 0 493 839 (21 2 170) with the special tool 2 288 165 from the clutch.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the bolts (arrows).
Parts: Screws

Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Clutch to flywheel
M8 Replace screws.	Joining torque	15 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw special tool 2 358 471 from clutch disc with aid of accompanying screw.
