Installing left output shaft

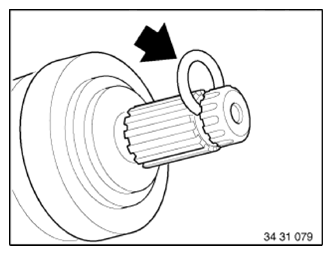

Lever out the O-ring (1).
Replace O-ring (1).
Parts: O-ring
Insert O-ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the circlip (arrow).
Parts: Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

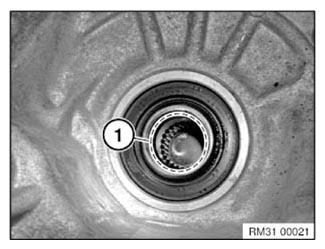

Insert the output shaft (1) in arrow direction in the transmission.
Slide the output shaft (1) up to the stop in the transmission.
The output shaft (1) must snap-in audibly.
Check for secure seat by levering.

Courtesy of BMW OF NORTH AMERICA, INC.
Turn steering wheel to left.

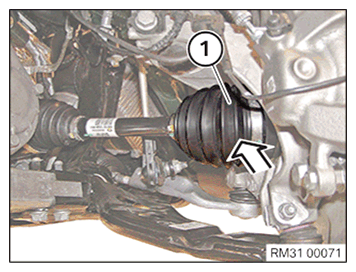

Insert the output shaft (1) from the front into the swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

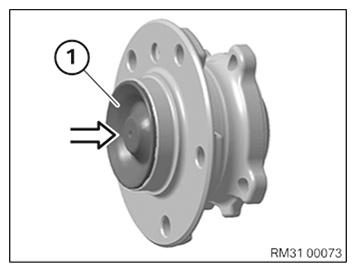

Note the installation position of the compression spring (2) on the collar screw (1).
Keep the collar screw (1) and the front gearing of the wheel bearing and the output shaft clean and free of grease.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the collar screw (1) and the compression spring.
Parts: Collar screw, compression spring
Hand-tighten the collar screw (1) and the compression spring.

Courtesy of BMW OF NORTH AMERICA, INC.

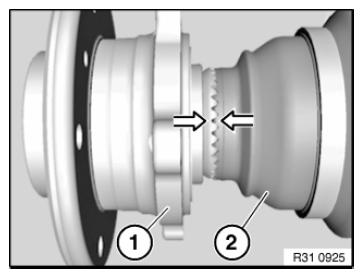

Install the front gearing of wheel bearing (1) and the output shaft (2) to establish a positive connection (tooth-in-tooth position).

Twist the wheel hub and output shaft in opposite direction to check whether the front gearing teeth mesh. Tighten the threaded connection when positive locking is ensured.

TIGHTENING TORQUES SPECIFICATION

Output shaft to wheel bearing
M16 Replace the collar screw.
	Joining torque	210 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, connect the protective cap (1) in arrow direction.
