Installing center rear undershield

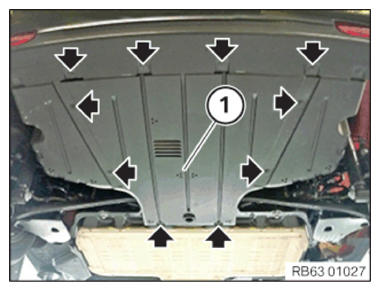

• Position the undershield (1) at the center in the rear.
• Tighten the screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Underbody protection to body
Screw	tightening torque	2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
