Accelerator Cable
- Start and run engine until normal operating temperature is reached. Allow engine to run at idle speed. Measure accelerator pedal free play at pedal.

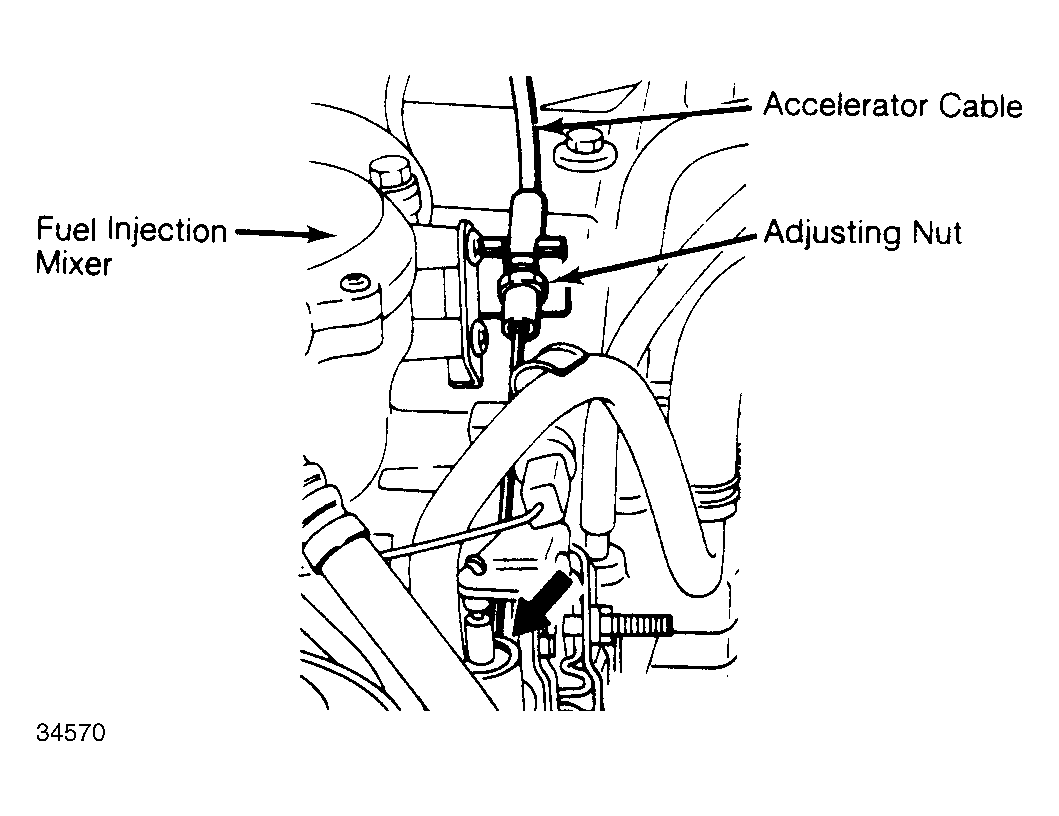

- To adjust free play, loosen cable adjusting nut at fuel injection mixer. Adjust length of cable until free play is within specifications and tighten adjusting nut.
ACCELERATOR CABLE FREE PLAY
| Application | In. (mm) |
|---|---|
| Free Play (at Pedal) | 0-.04 (0-1) |
