Service Indicator & Warning Lights: Notes

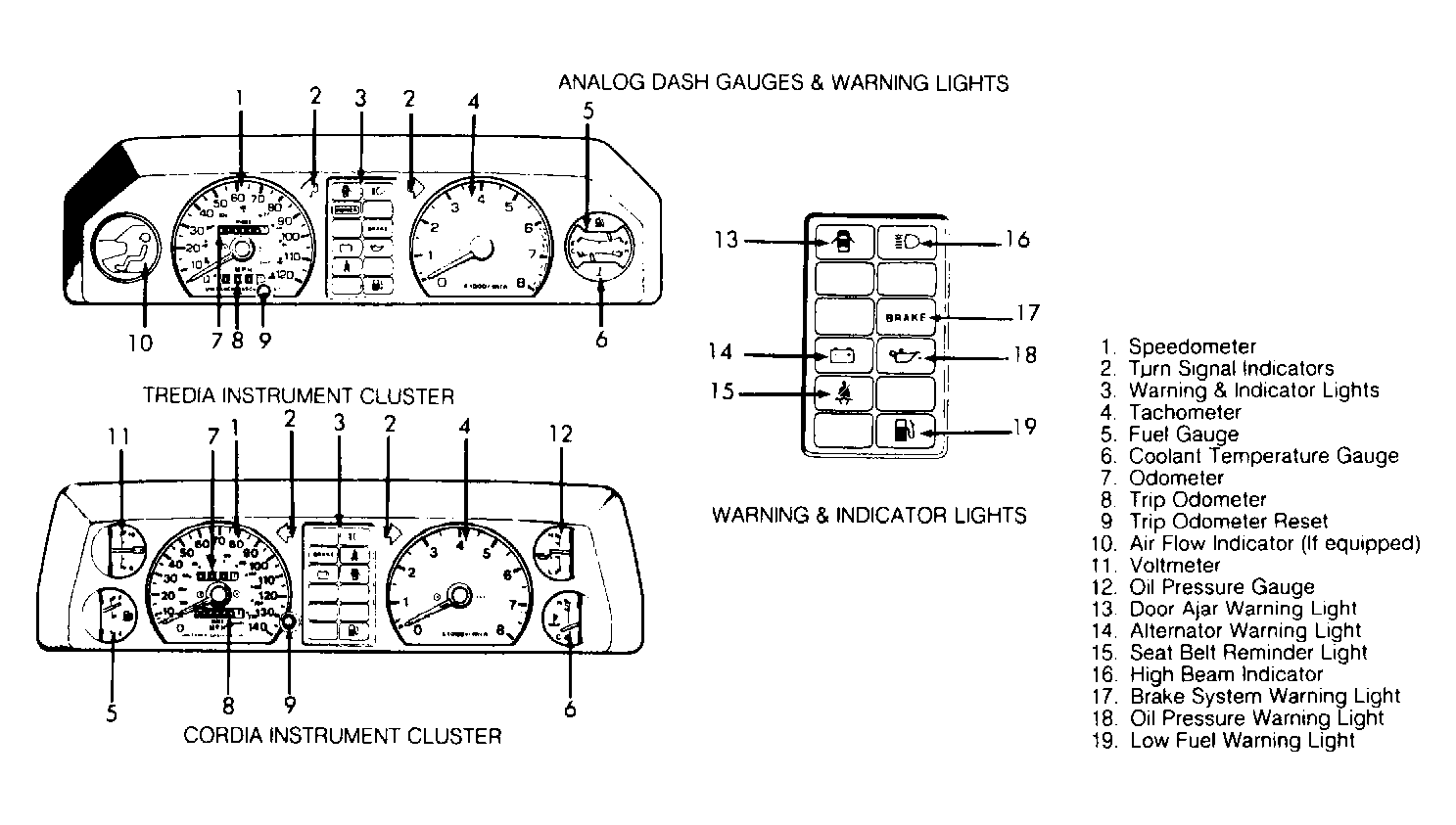

Fig 1: Analog Dash Gauges & Warning Lights
G90F07952Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

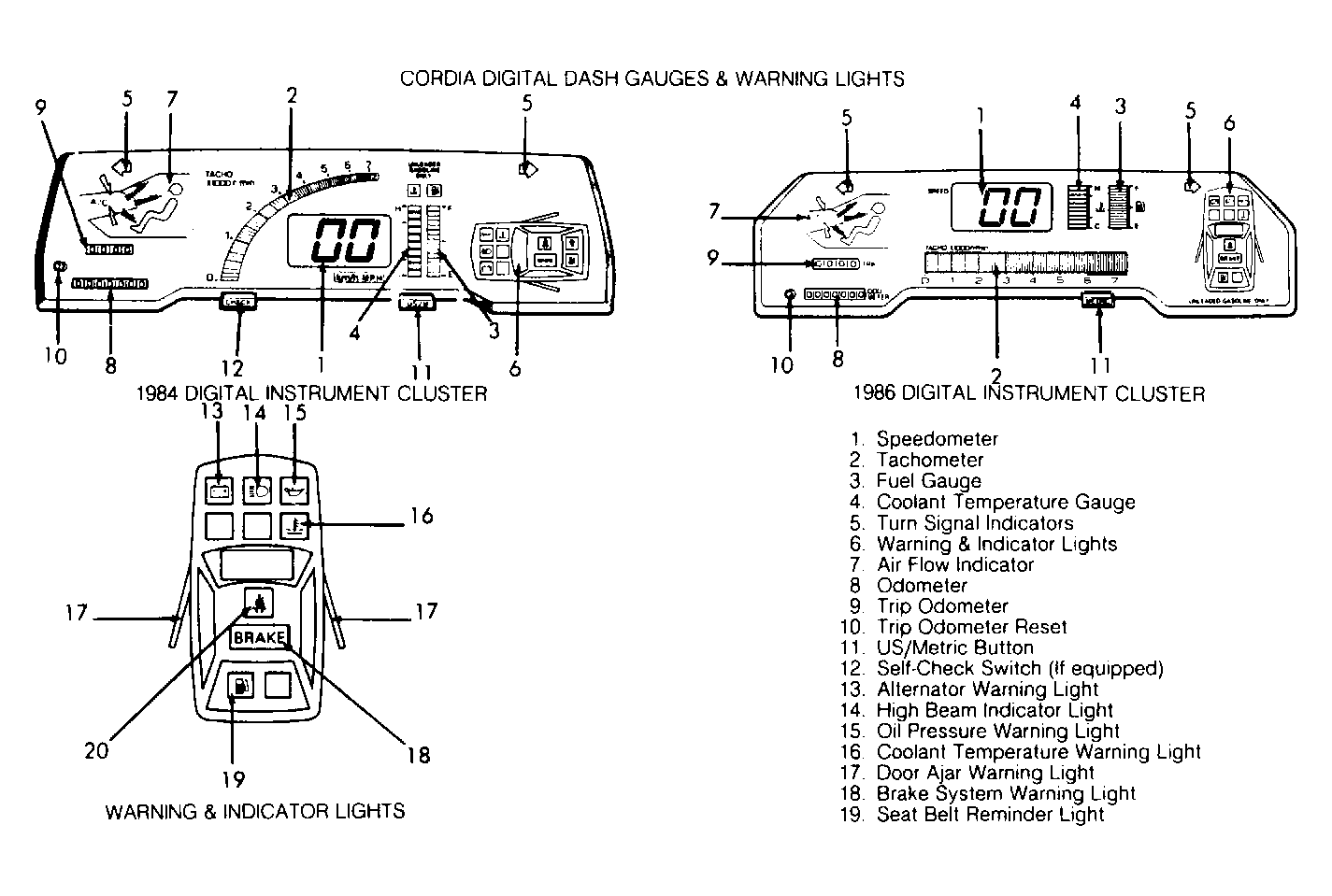

Fig 2: Digital Dash Gauges & Warning Lights
G90H07953Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
