Control Units

CONTROL UNITS LOCATION

Component	Location
Carburetor Control Unit	Under right side of dash.
Electronic Lock-Up Converter Control (ELC)	Under left side of engine.

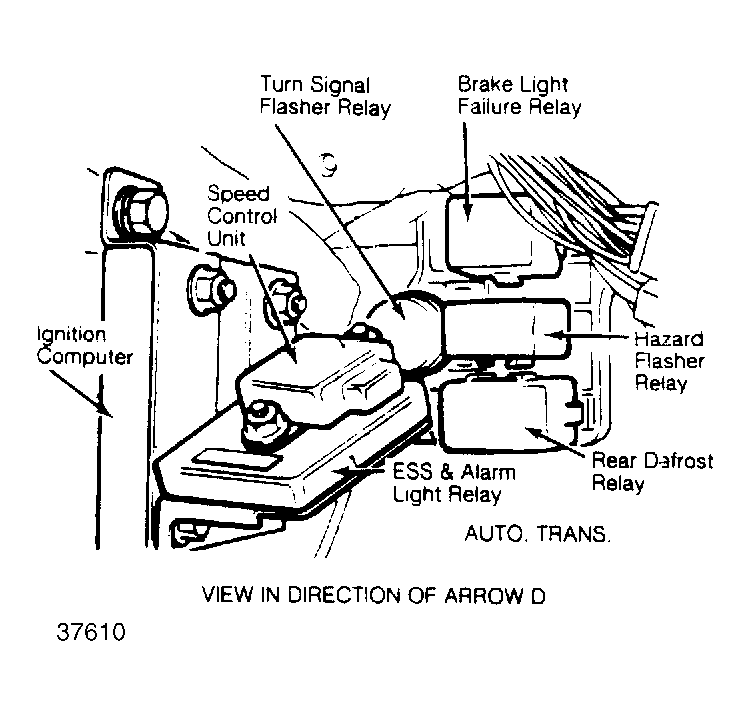

Ignition Computer	Below left side of dash. See Figure .

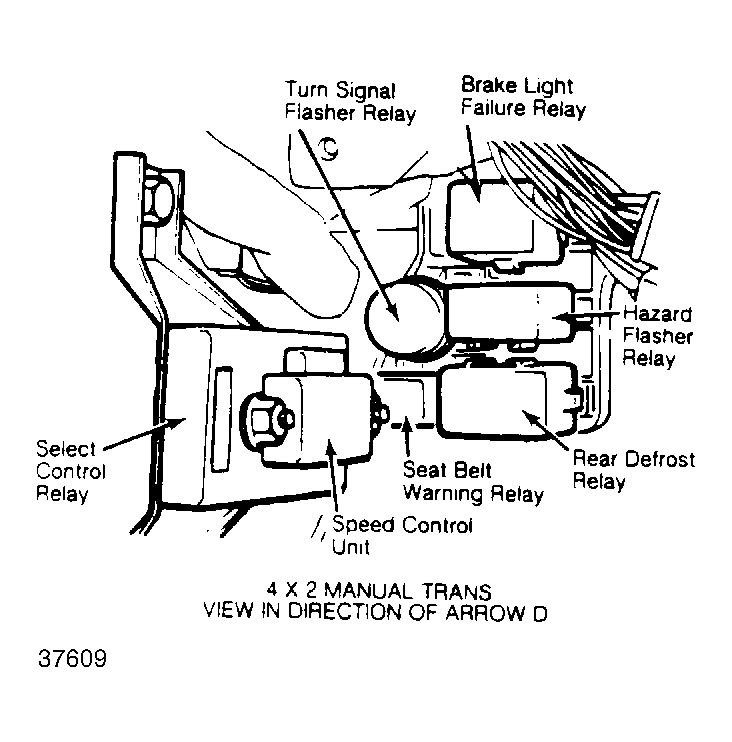

Speed Control Unit	Under left side of dash. See Figure & Figure .
