Repair and Diagnosis (Single Page)
›
Engine Performance
›
System
›
ECI CEC System
›
Wiring Diagrams
Wiring Diagrams

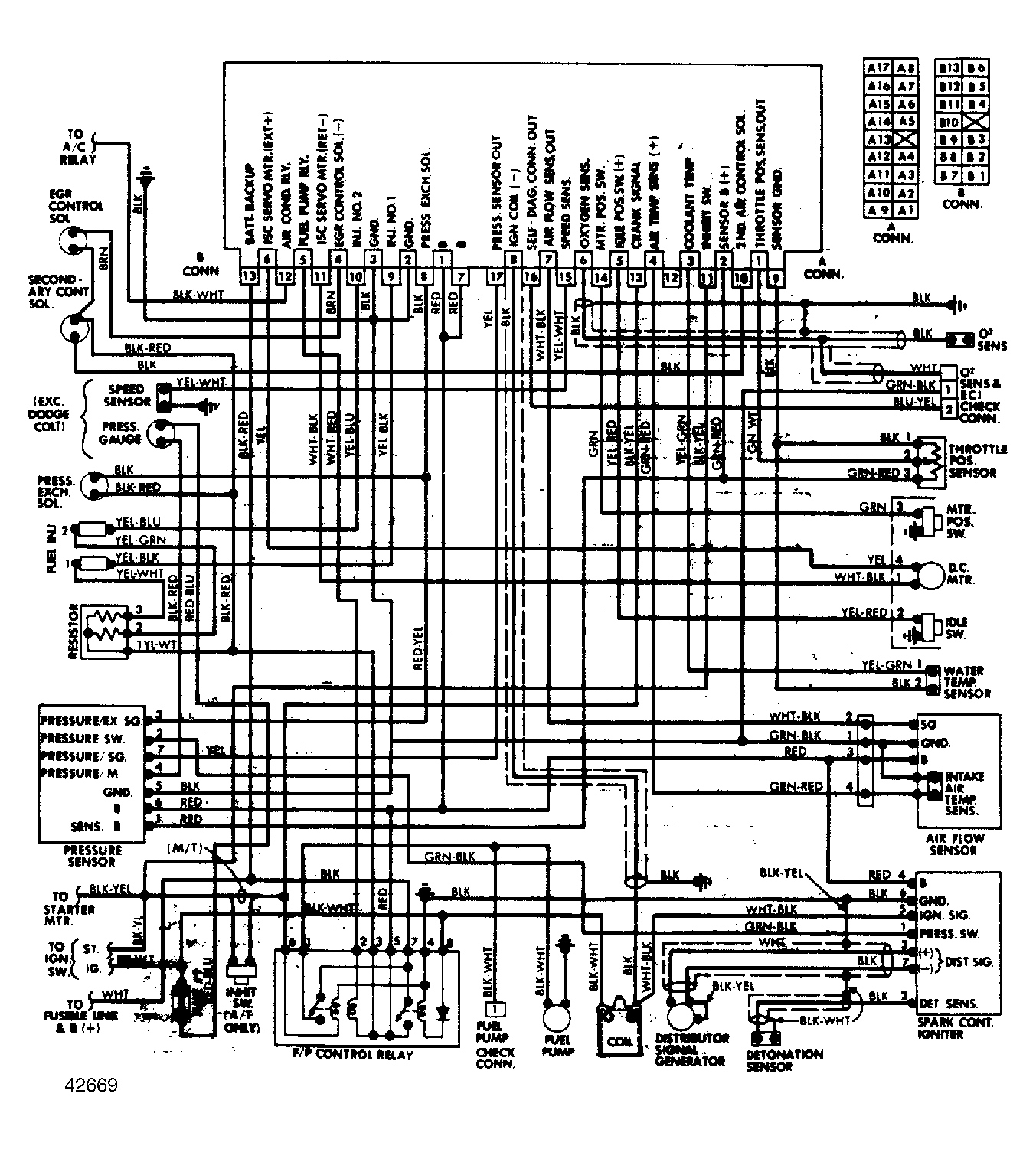

Fig 1: ECI System Wiring Diagram (Galant)
