Service Point Locations
Service Point Locations

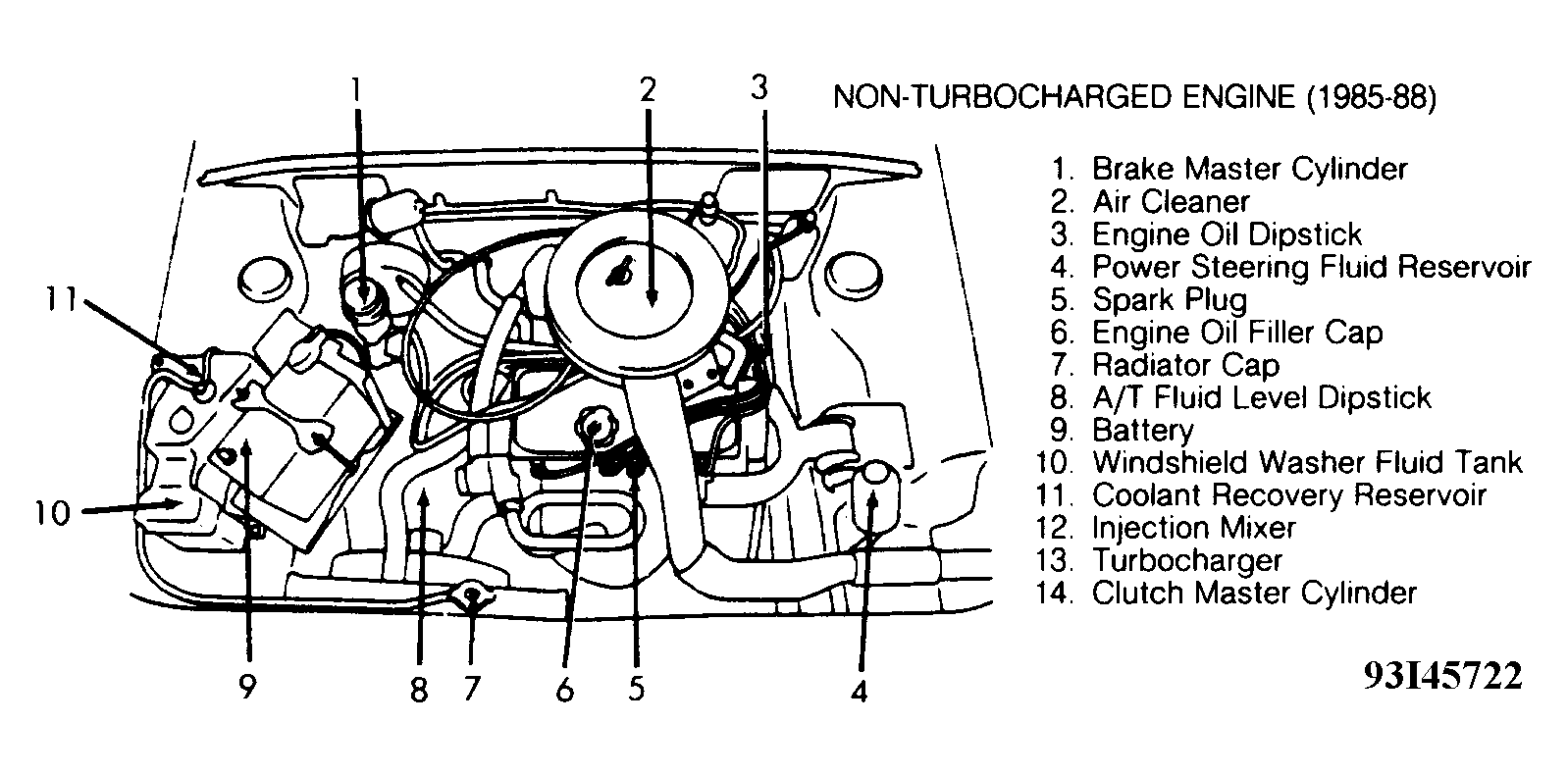

Fig 1: Service Point Locations (1985-88 Non-Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

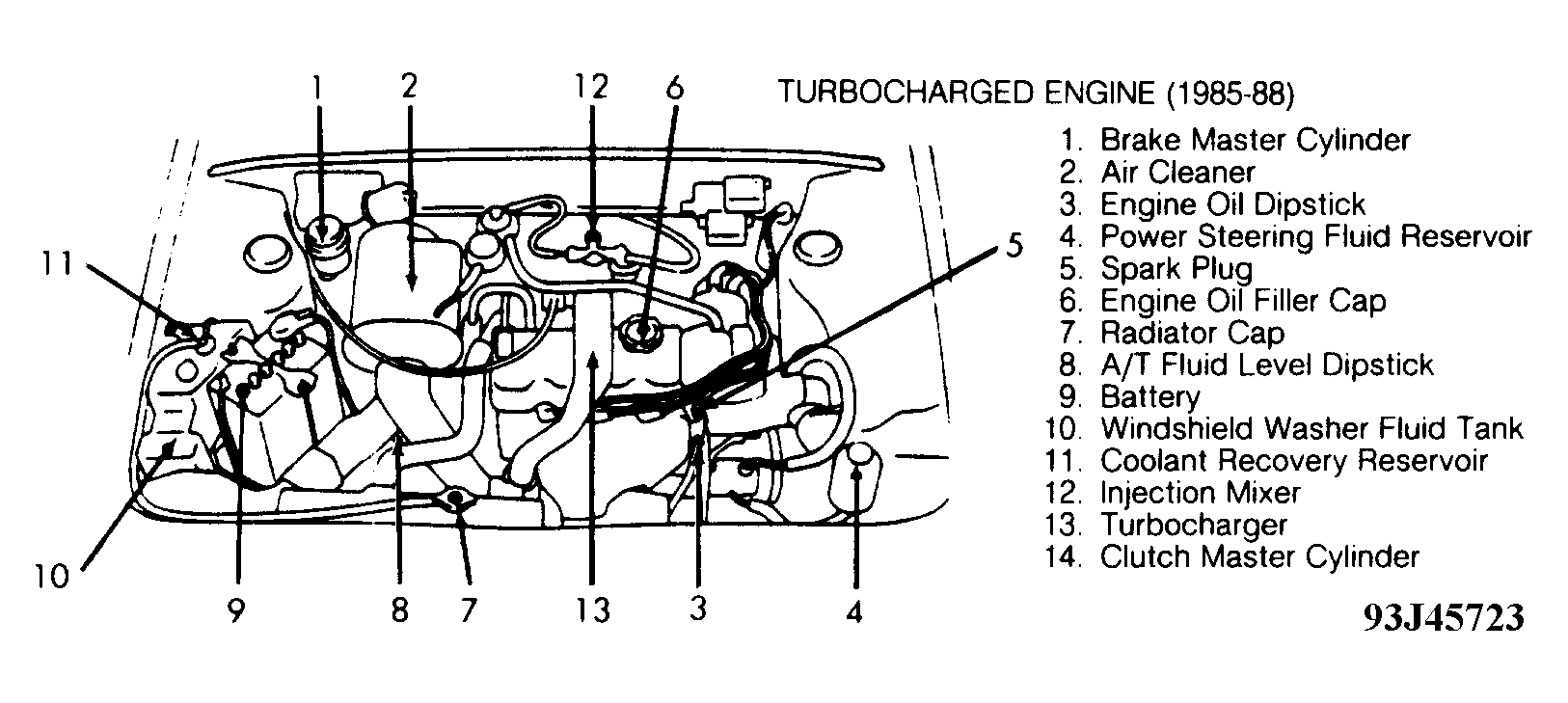

Fig 2: Service Point Locations (1985-88 Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

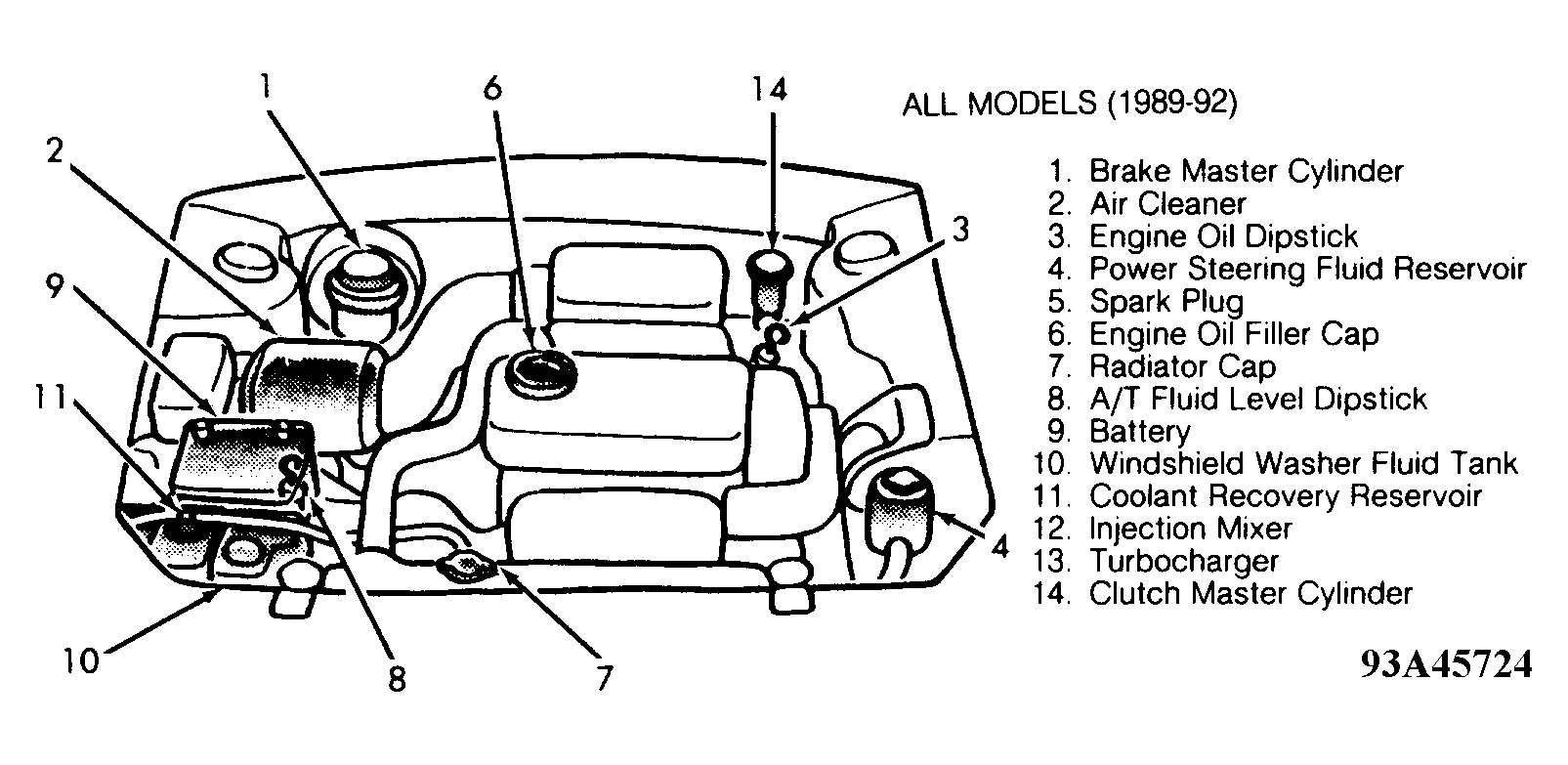

Fig 3: Service Point Locations (1989-96)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
