Pretesting Inspection

If FBC system components fail, interruption of fuel supply or failure to supply proper amount of fuel for engine operation will result. The following conditions will result: engine is hard to start or does not start at all, unstable idle and/or poor driveability. Before testing FBC system, perform basic engine checks first (ignition system, incorrect engine adjustments, etc.).

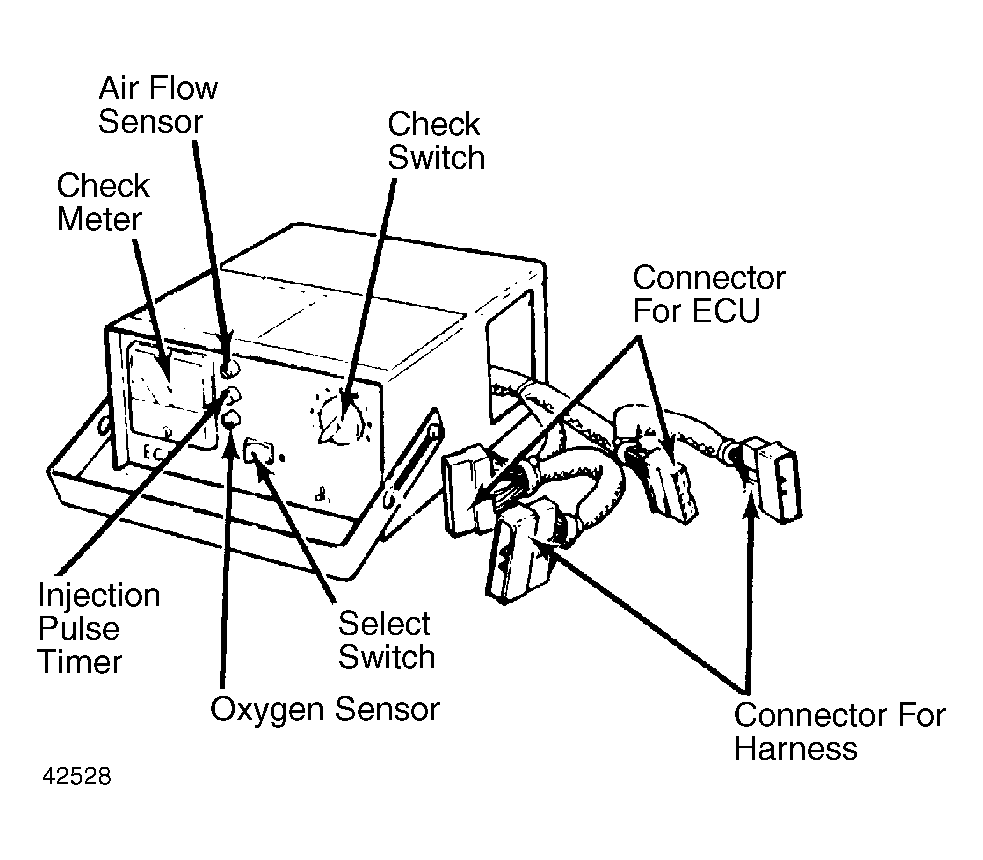

Fig 1: Checker for Testing Mitsubishi ECI System
G42528

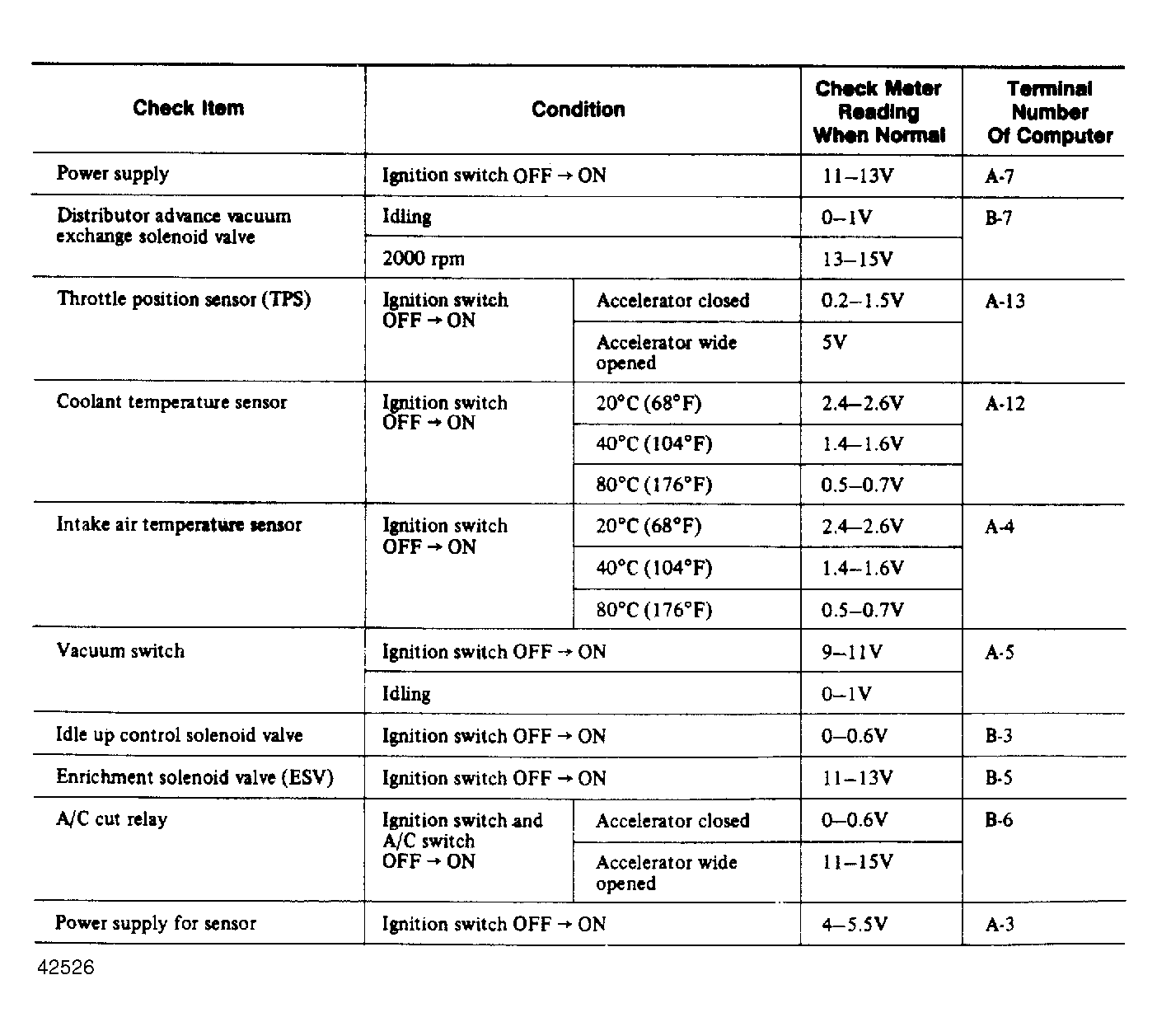

Fig 2: Output Signals for Mitsubishi Pickup (Part 1 of 2)
G42526
