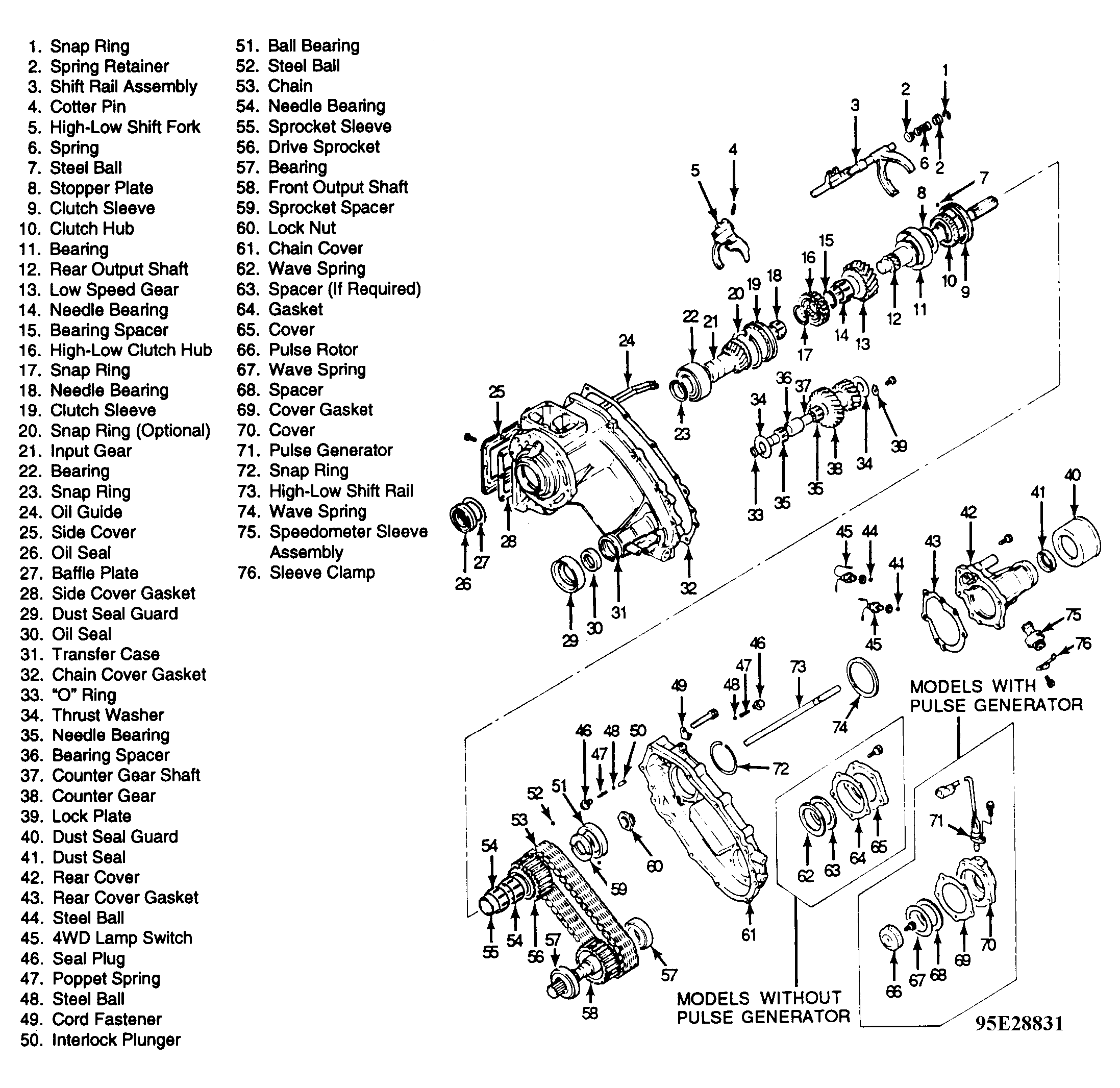

Transfer Case: Overhaul: Description
Two-speed transfer case is mounted on rear of transmission. KM145 is model number for manual transmission/transfer case combination, which uses KM132 5-speed manual transmission. KM146 is model number for automatic transmission/transfer case combination, which uses MA904 3-speed automatic transmission. There are only minor differences between transfer cases and these are due to difference in attachment to manual or automatic transmissions.
