Wiring Diagrams

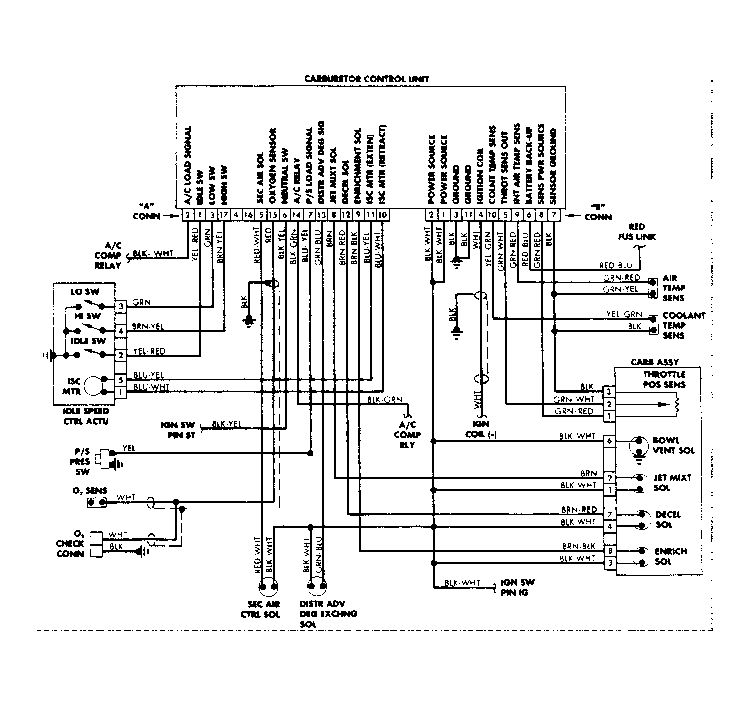

Fig 1: Mitsubishi Cordia/Tredia W/ M/T Feedback Carb Sys Wir Diagram

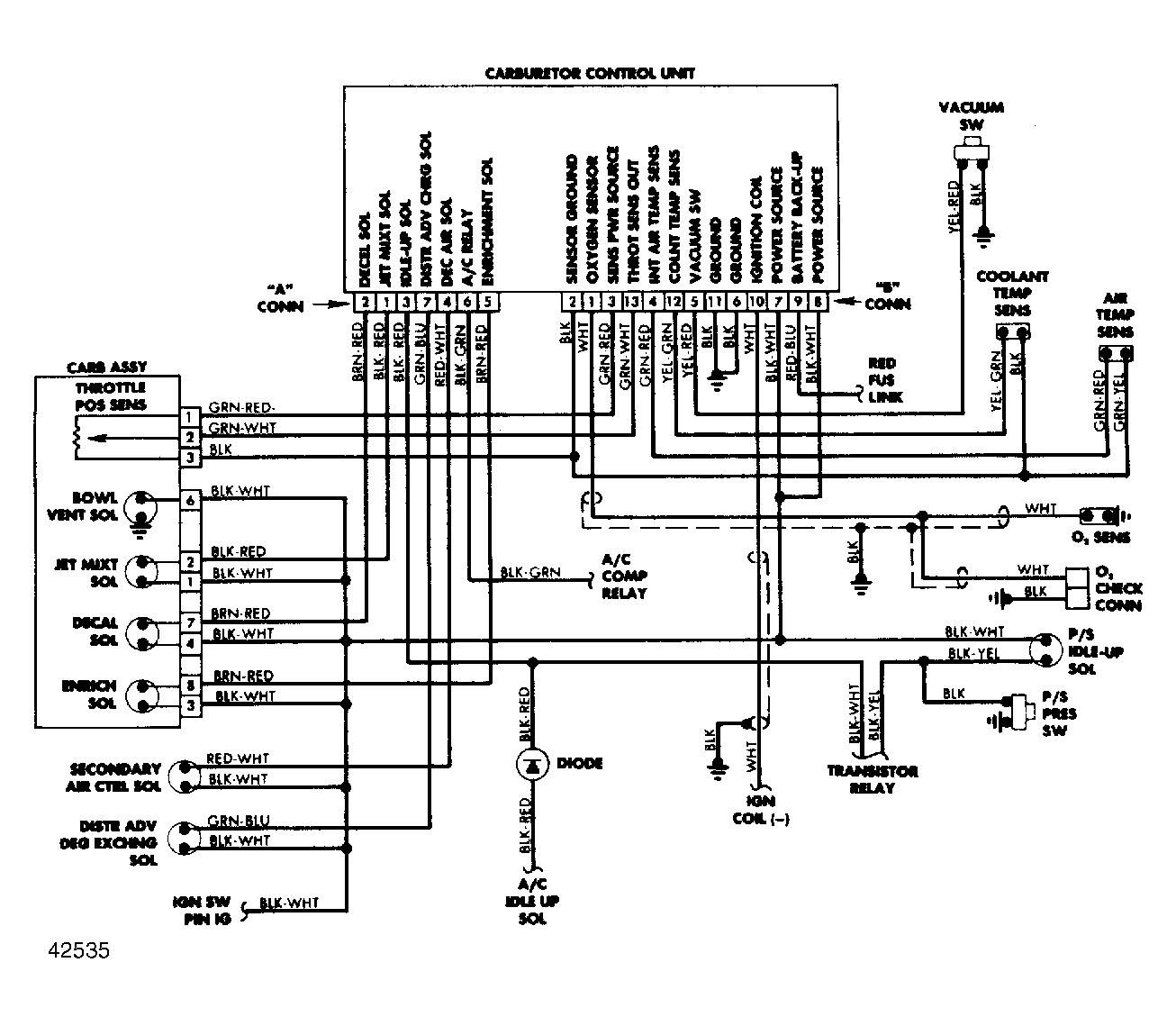

Fig 2: Mitsubishi Cordia/Tredia W/ A/T Feedback Carb Sys Wir Diagram
