Home › Mitsubishi › 1986 › Starion ESI-R › Repair and Diagnosis › Engine Performance › System › ECI CEC System › Wiring Diagrams

Wiring Diagrams

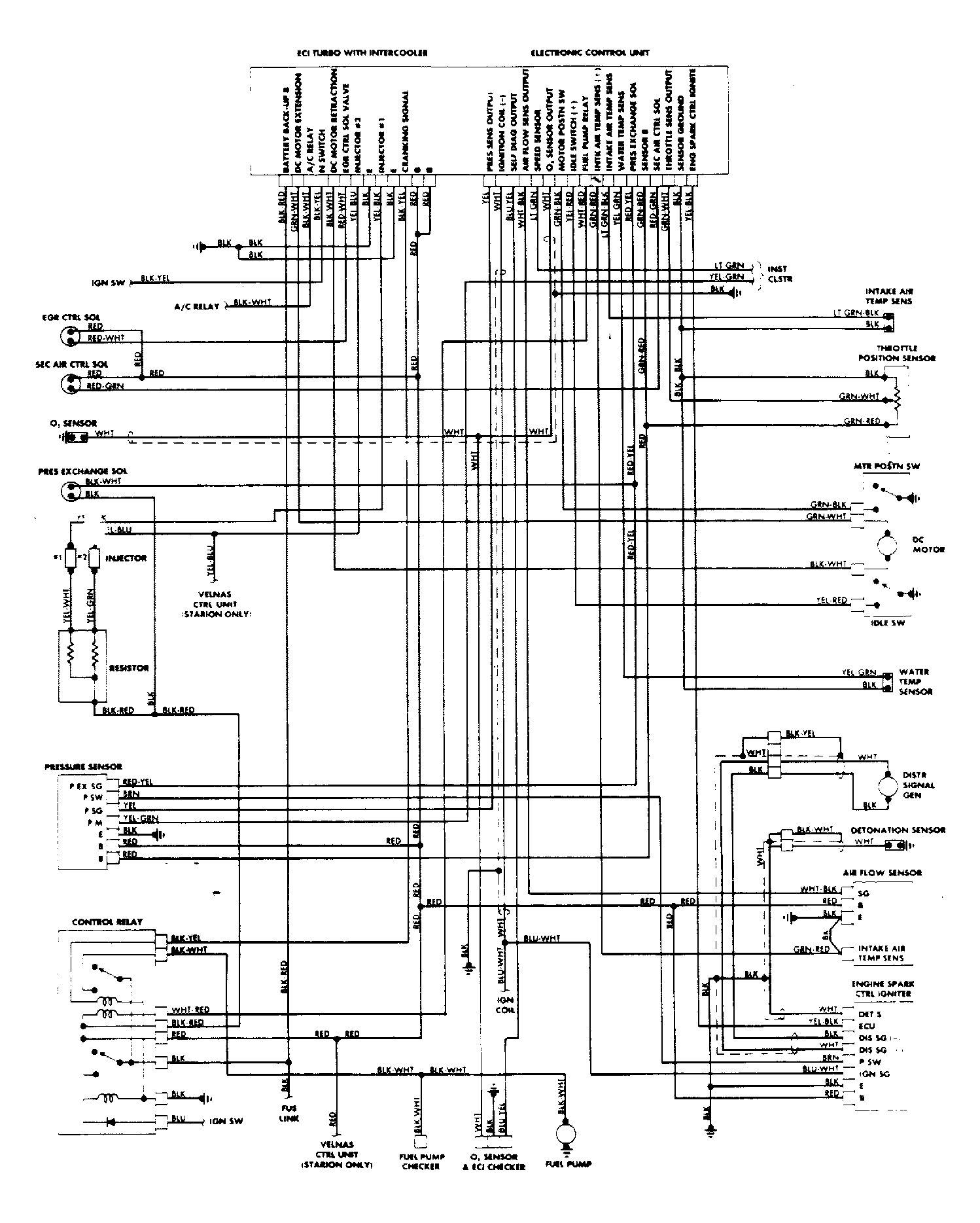

Fig 1: Starion ECI System Wiring Diagram (Intercooled Models)
G48076
