Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On blower motor. |
| ECT Pulse Generators (2) | On top of transaxle case. See Figure . |
| Fuel Pump Test Connector | Right rear corner of engine compartment. See Figure . |
| Fuse Block | On lower left side of dash. See Figure . |
| Oxygen Sensor Test Connector | Right rear corner of engine compartment. |

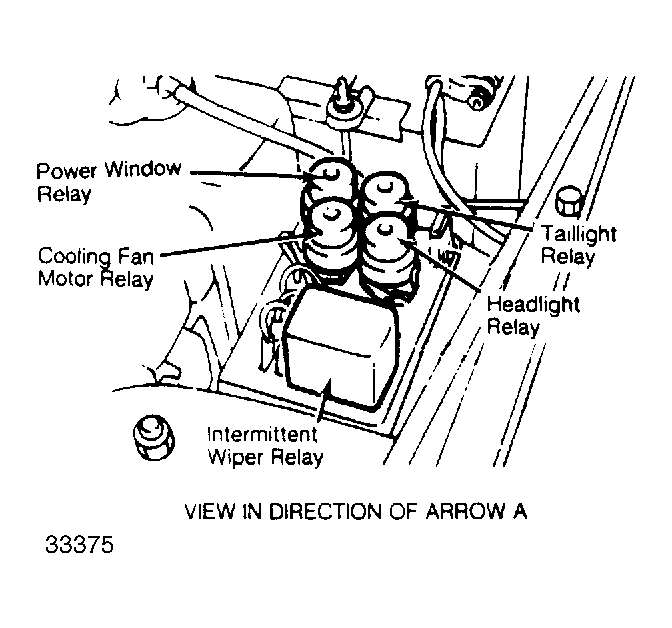

| Relay Block | On right inner fender panel. See Figure . |
| Spark Control Ignitor | In distributor (non-turbo) or on firewall (turbo). |
| Warning Chime Driver | Below center (Tredia) or right side (Cordia) of dash. |
