Service Indicator & Warning Lights: Notes

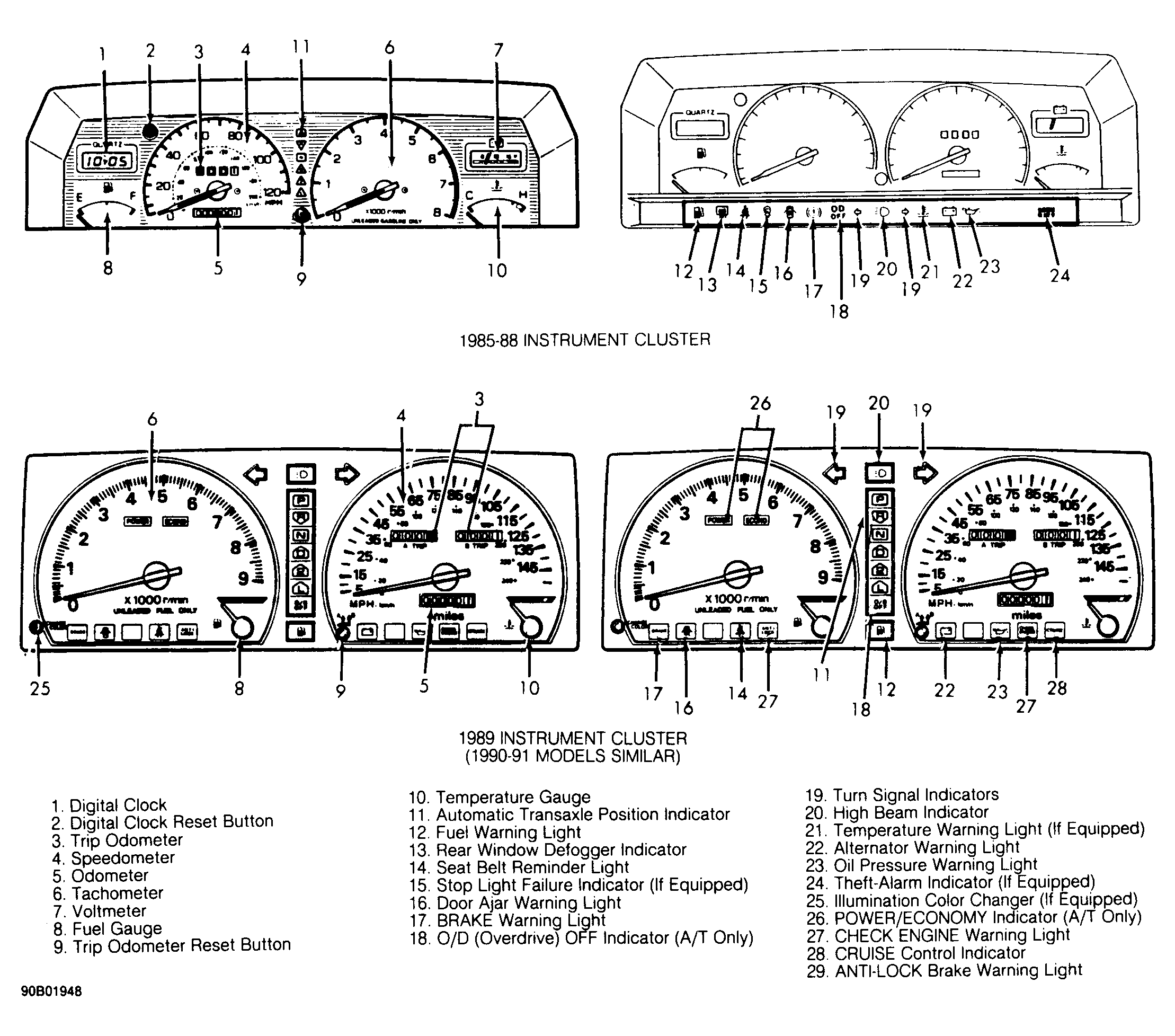

Fig 1: Dash Gauges & Warning Lights (1985-89 Shown; 1990-91 Similar)
G90B01948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.

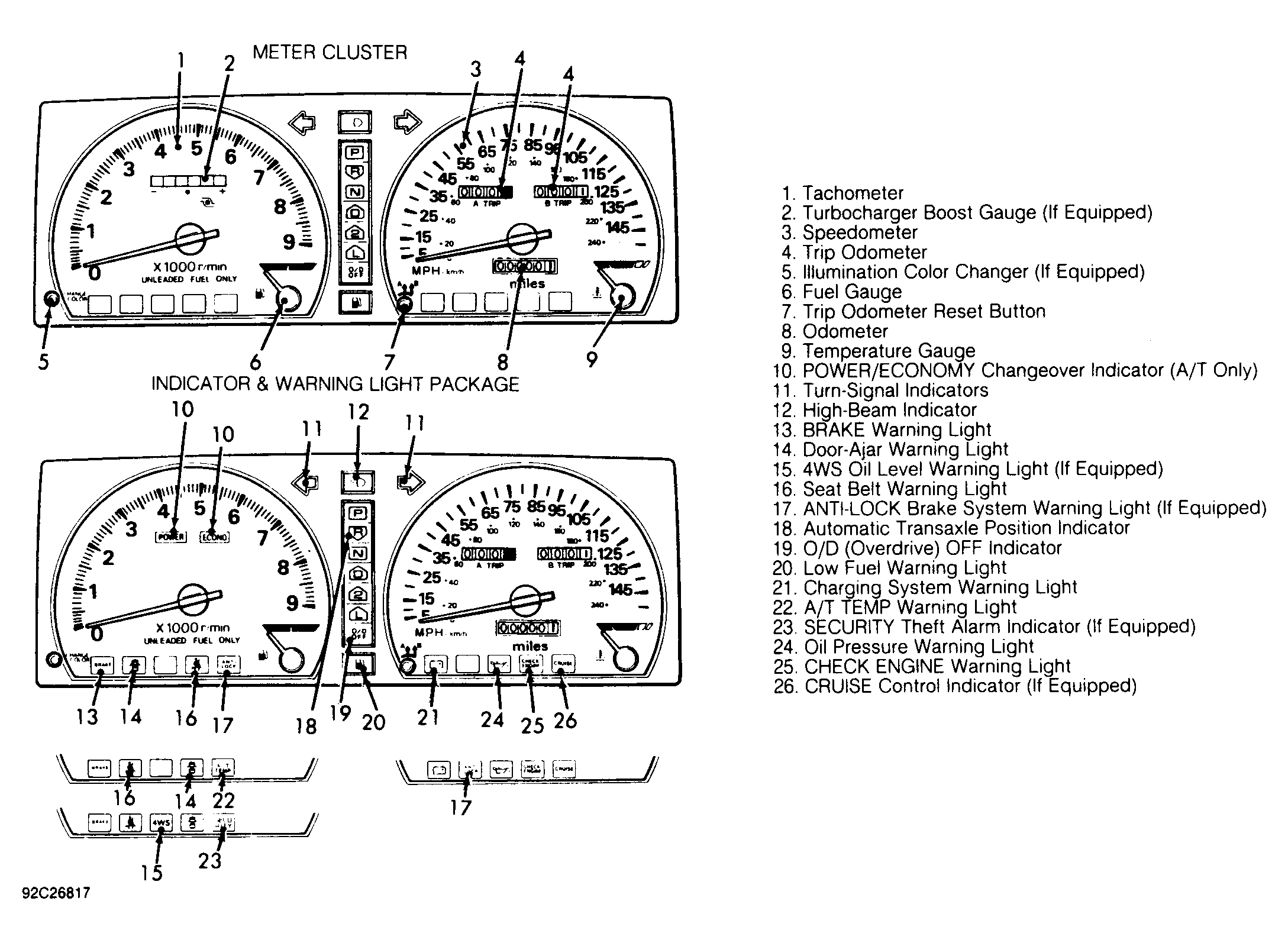

Fig 2: Dash Gauges & Warning Lights (1992)
G92C26817Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.
