Wiring Diagrams

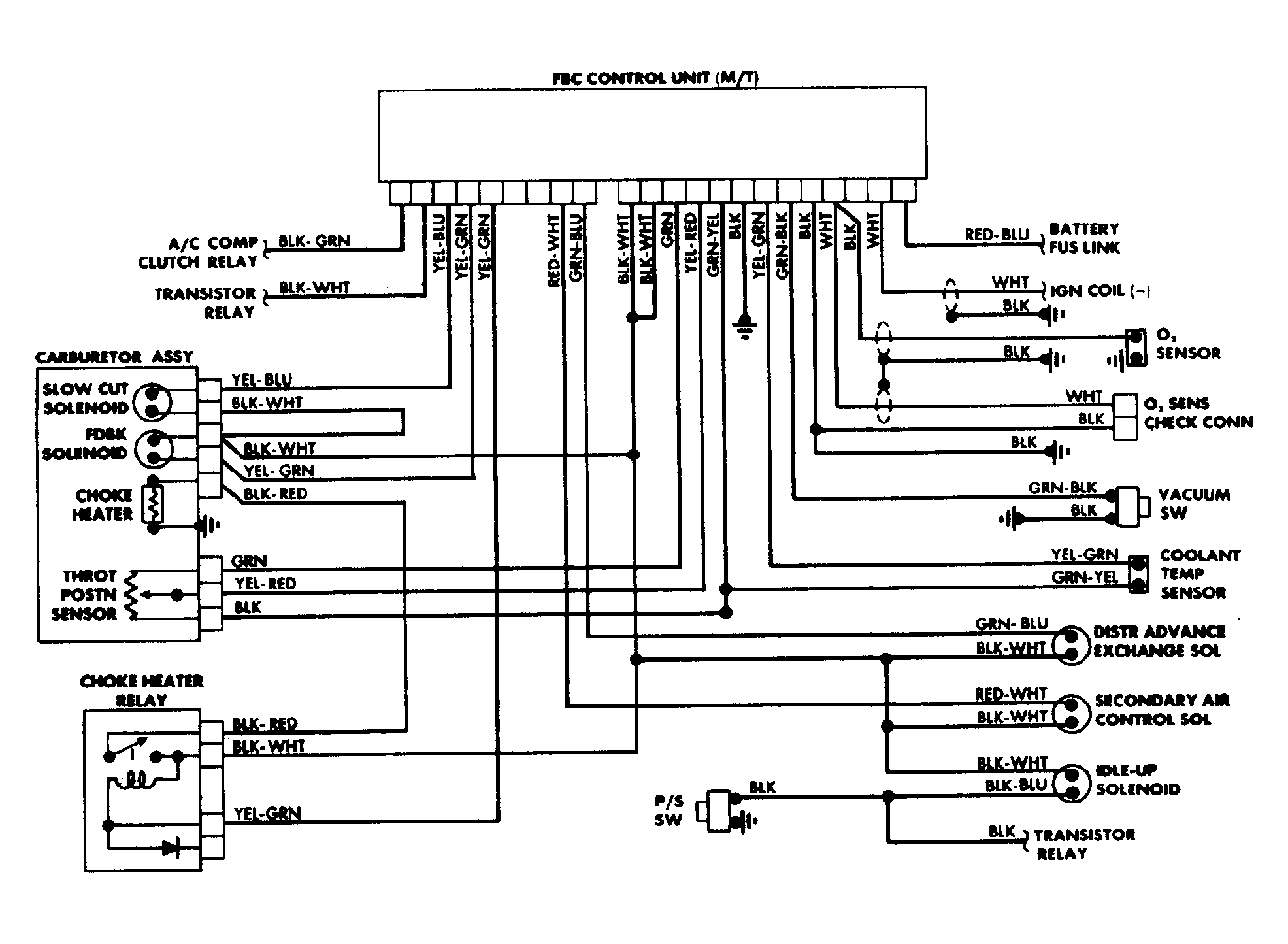

Fig 1: Wiring Diagram For Cordia & Tredia (Manual Transmission)

G61371

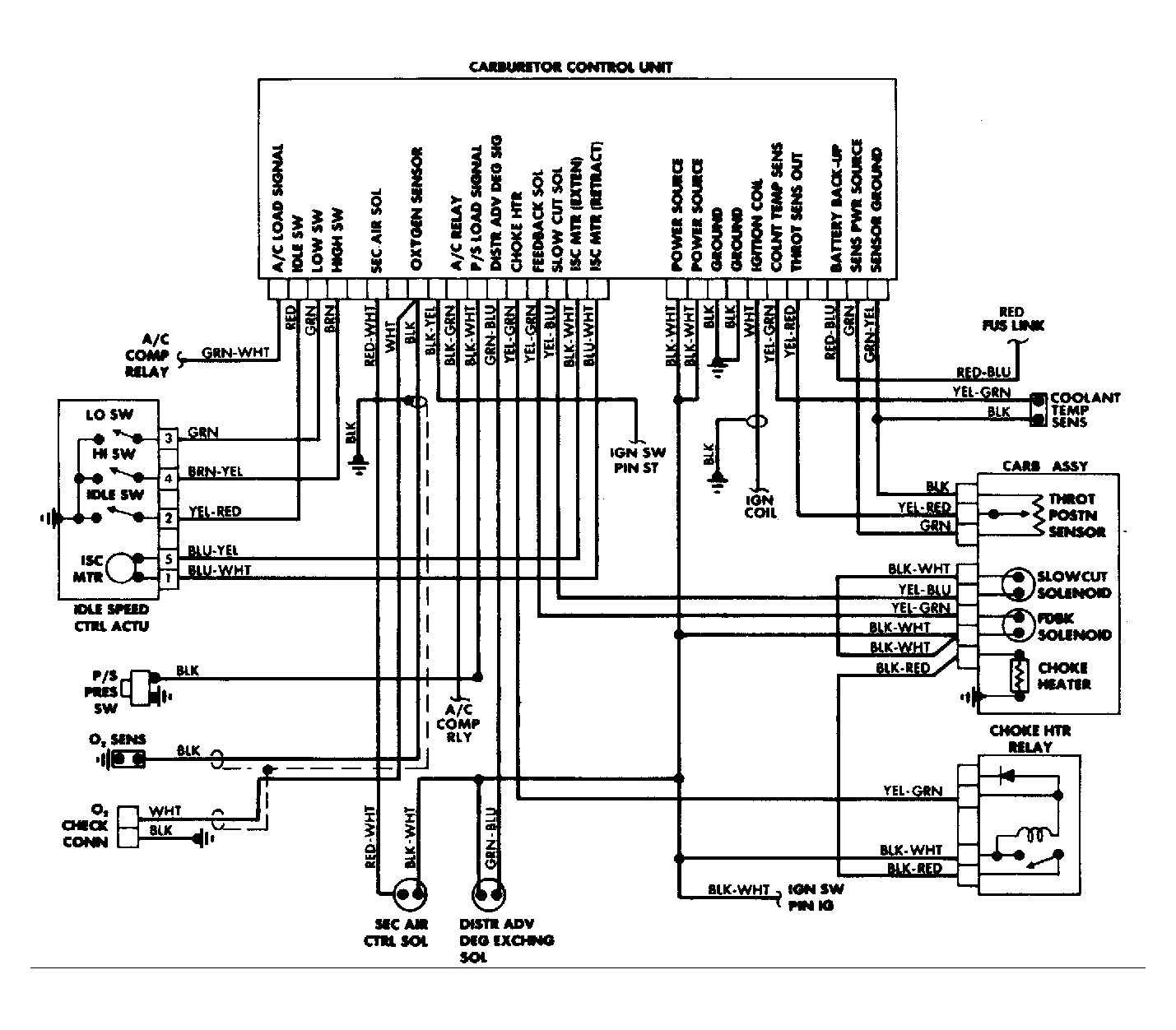

Fig 2: Wiring Diagram For Cordia & Tredia (Automatic Transmission)

G61372

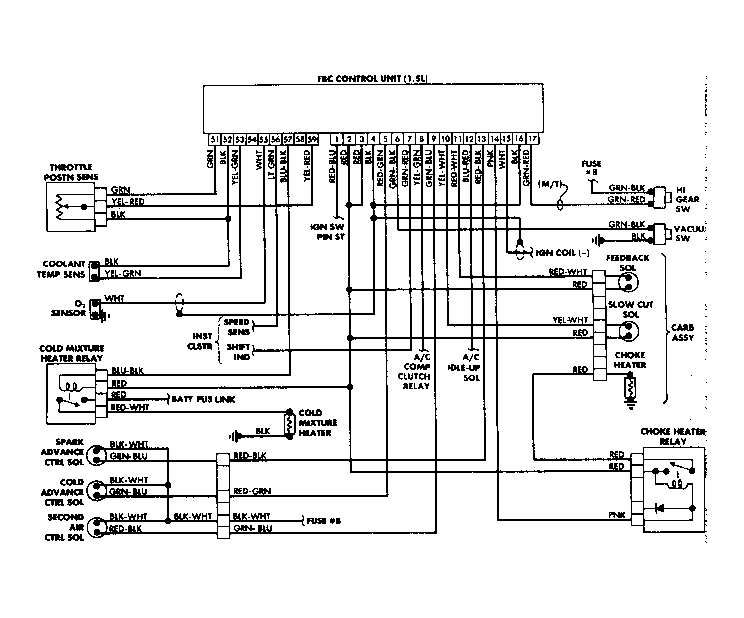

Fig 3: Wiring Diagram For Mirage

G61374

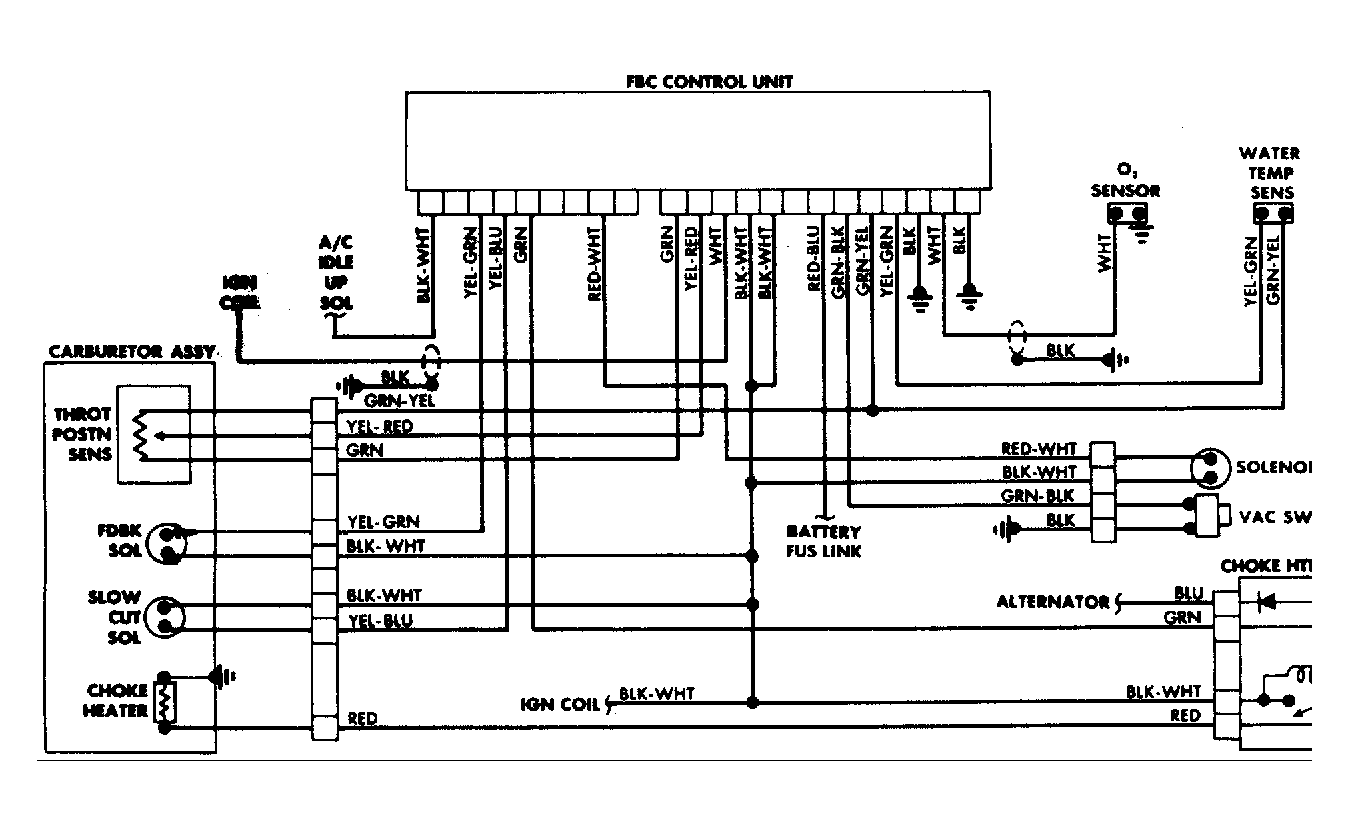

Fig 4: Wiring Diagram For Pickup

G61373

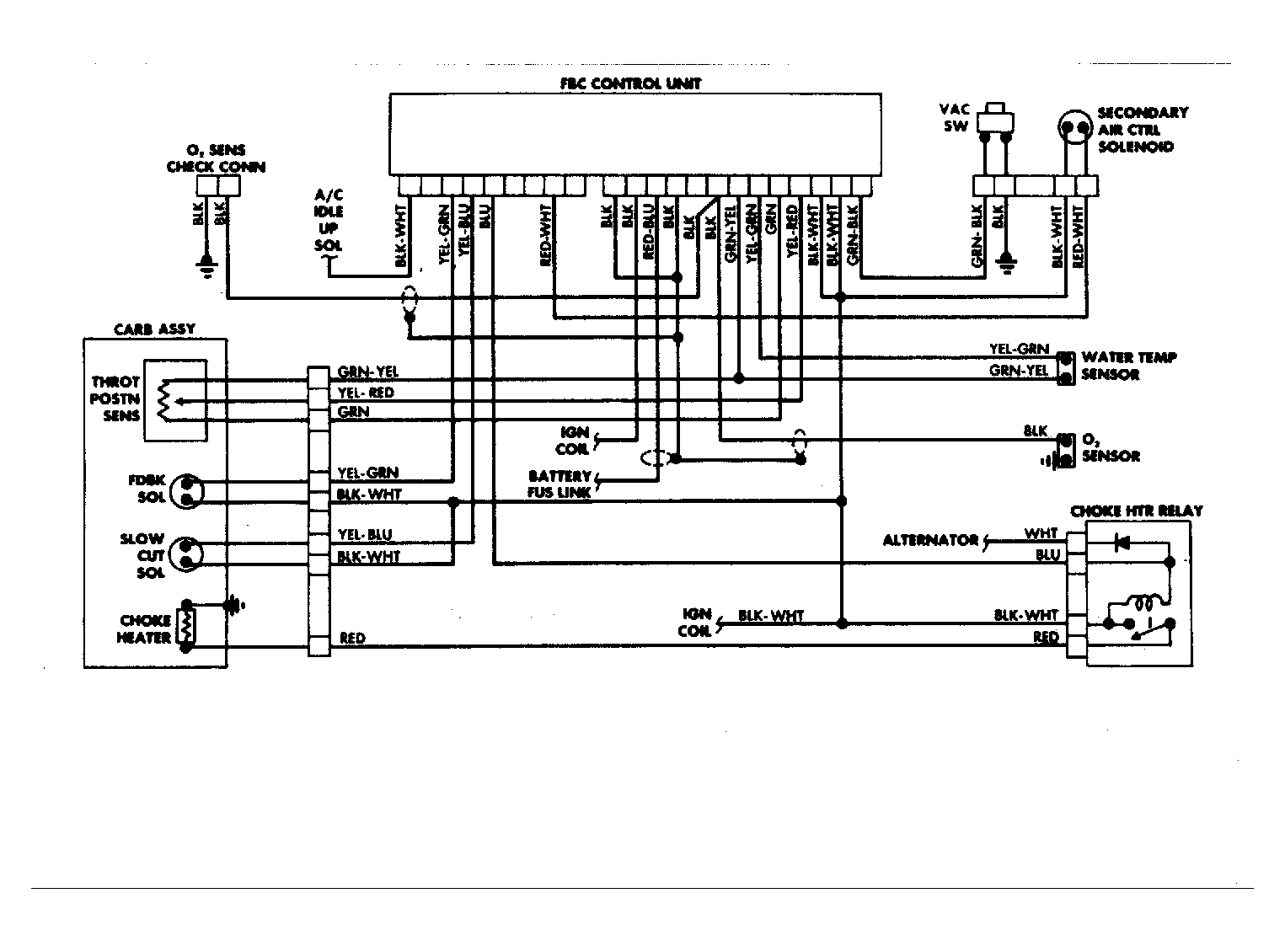

Fig 5: Wiring Diagram For Montero

G61376
