Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

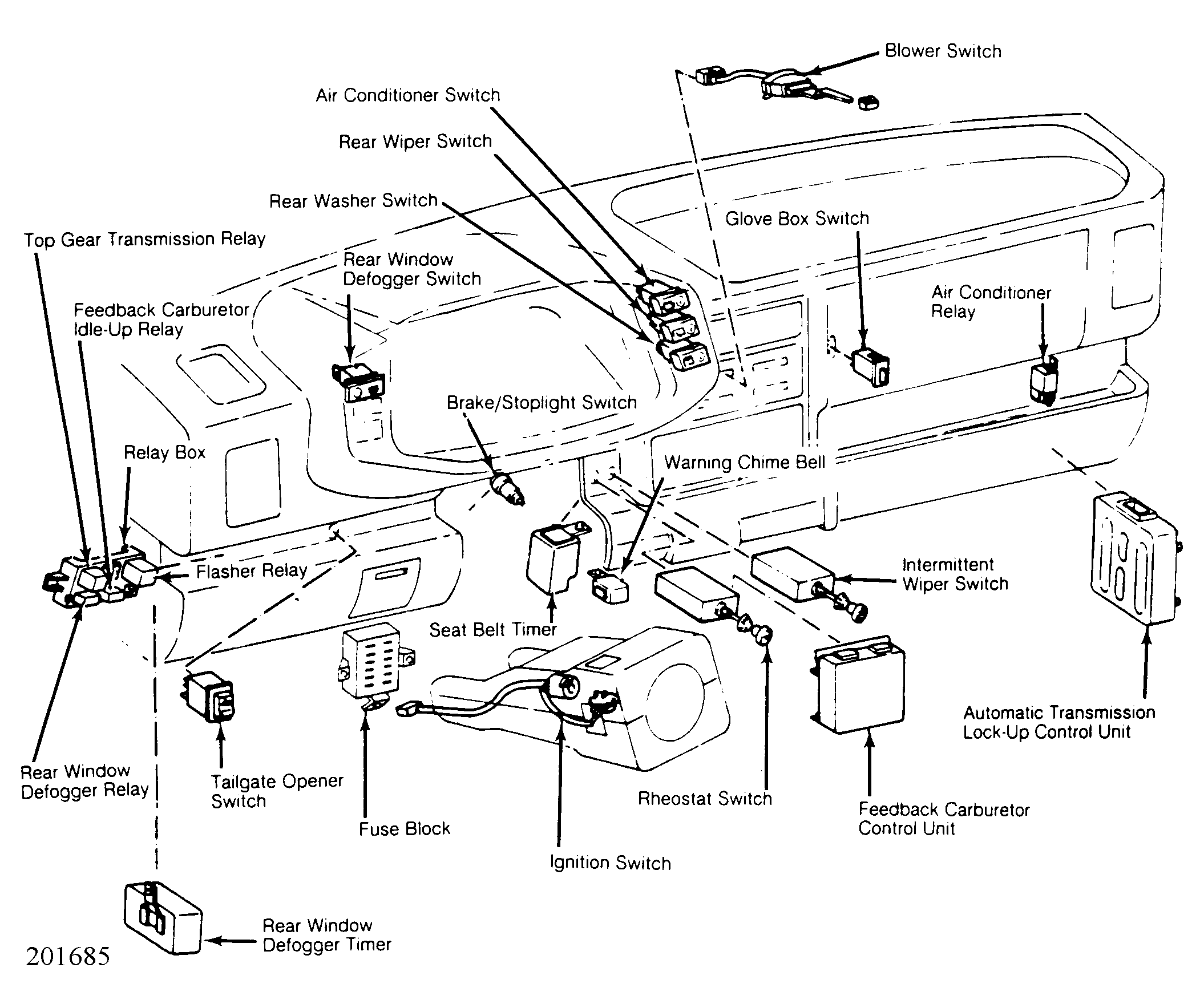

Fuse Block	Under left side of dash. See Figure .

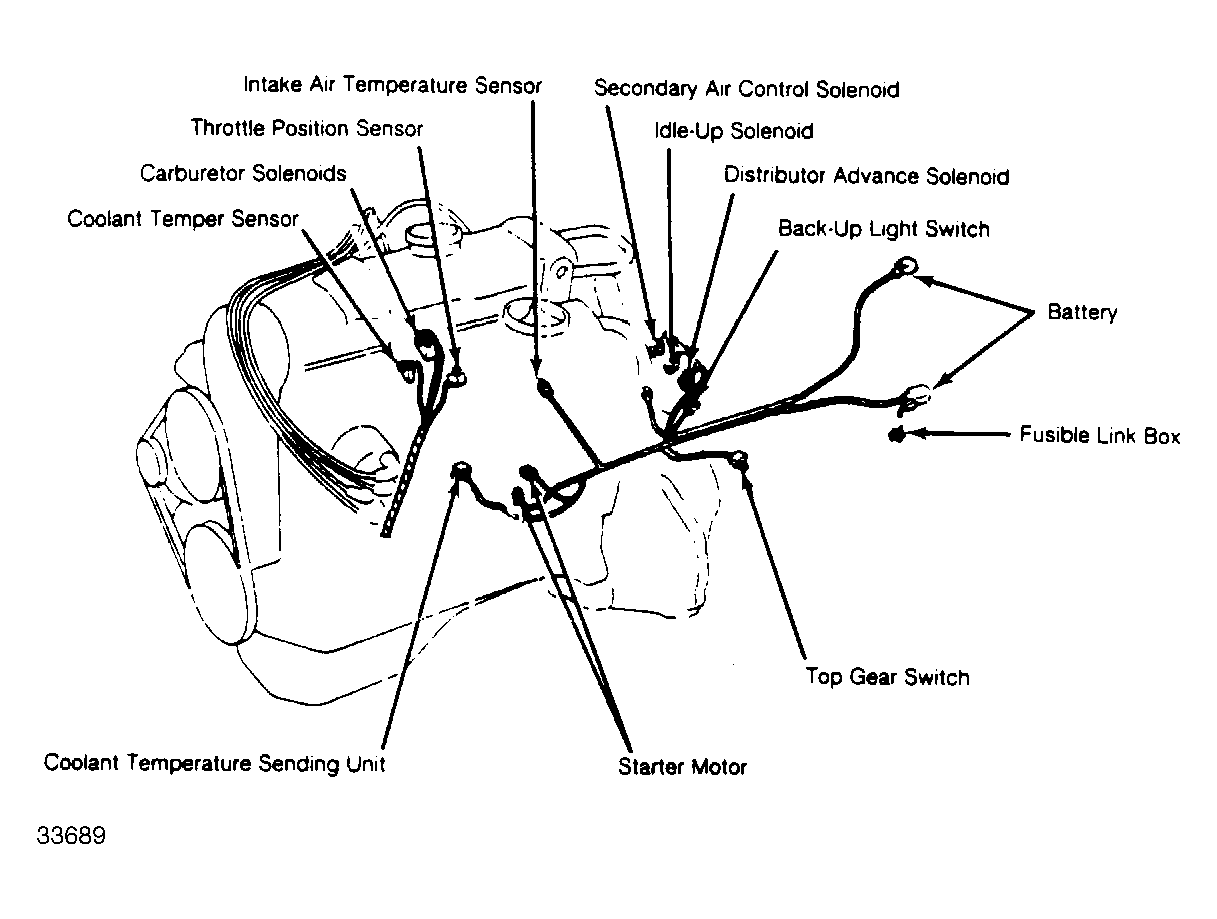

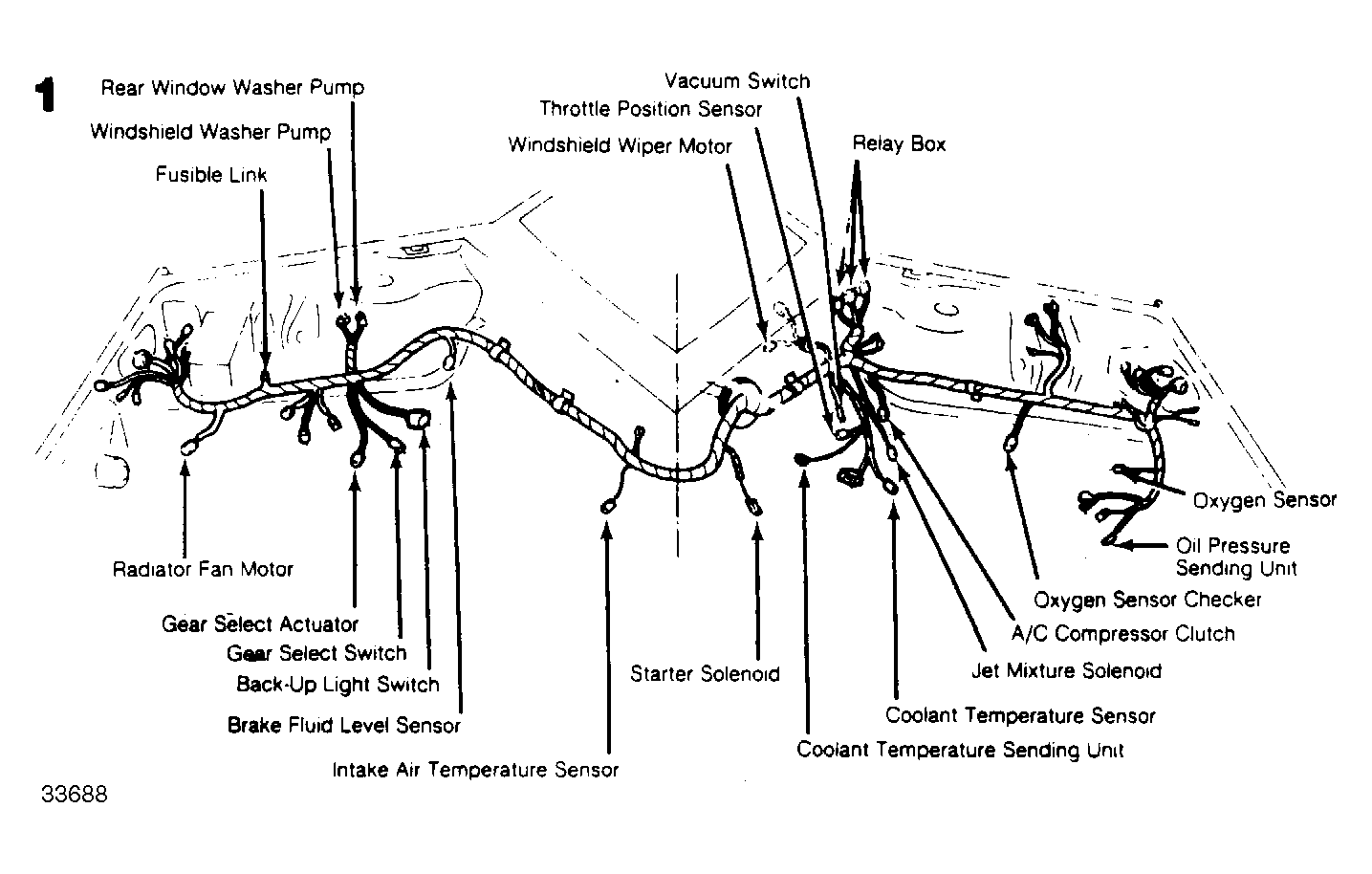

Fusible Links	Near positive terminal of battery. See Figure & Figure .
