Removal And Installation: Notes
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- The part indicated by * is the bolt with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

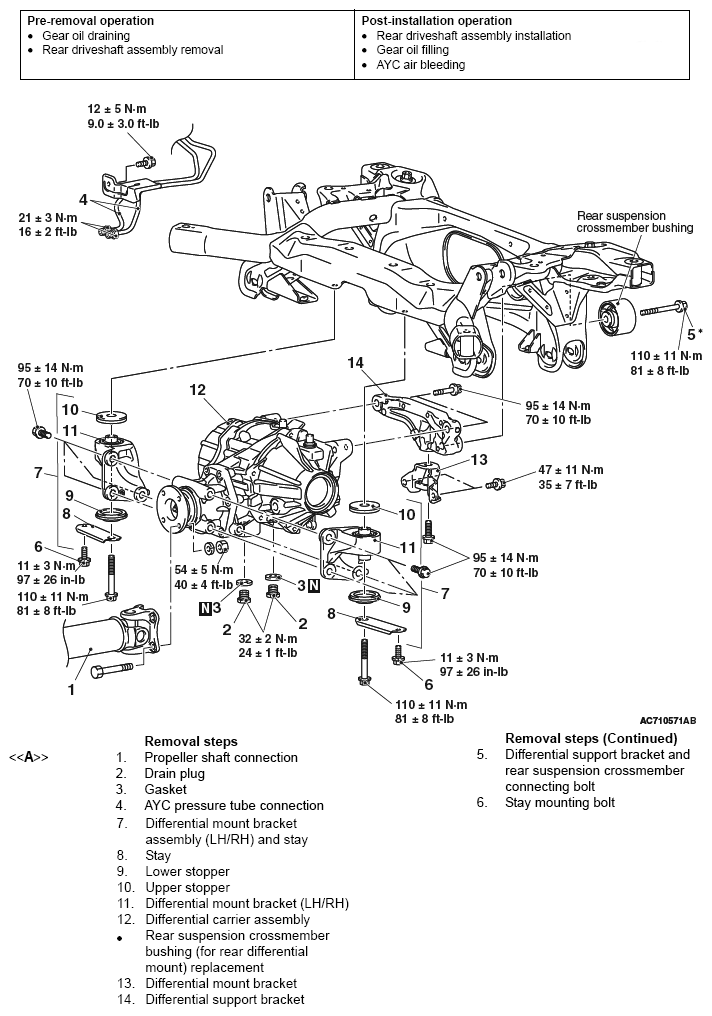

Fig 1: Differential Carrier Assembly Remove / Install Replacement Components With Torque Specifications
Required Special Tools:
- MB990847: Base
- MB991218: Bearing
- MB991162: Bolt
- MB992234: Bearing
- MB992235: Adapter
- MB992253: Remover and Installer
- MB992254: Base
