DTC B2414: Unlock sensor fail: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If DTC No. B2414 is set, diagnose the CAN bus lines.
  • When replacing the ECU, always check that the communication circuit is normal.

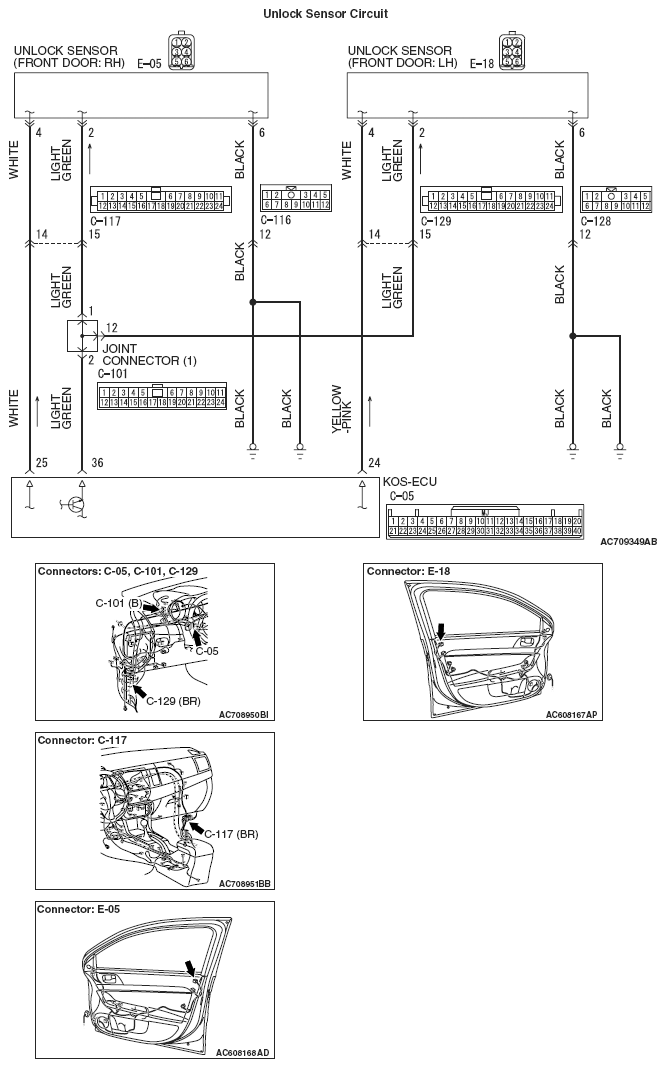

    Fig 1: Unlock Sensor - Circuit Diagram
    G05395155Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
