Mode Selector Switch
WARNING: This page is about a different car, the 1988 Mitsubishi Galant Sigma. However, it is still accessible from the selected car via links, so may be relevant.

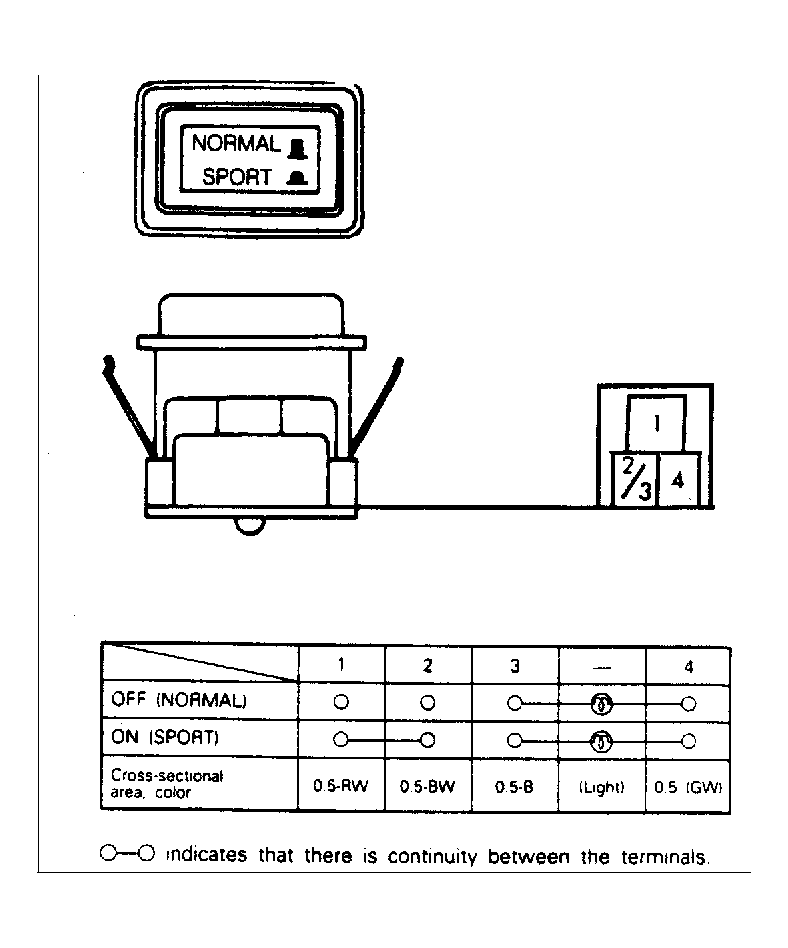

Remove switch and connector from vehicle. Check for continuity of switch terminals with the switch in both the "ON" and OFF" positions. See Fig 1 .
