Wiring Diagrams

Fig 1: Wiring Diagram for Starion

G94406

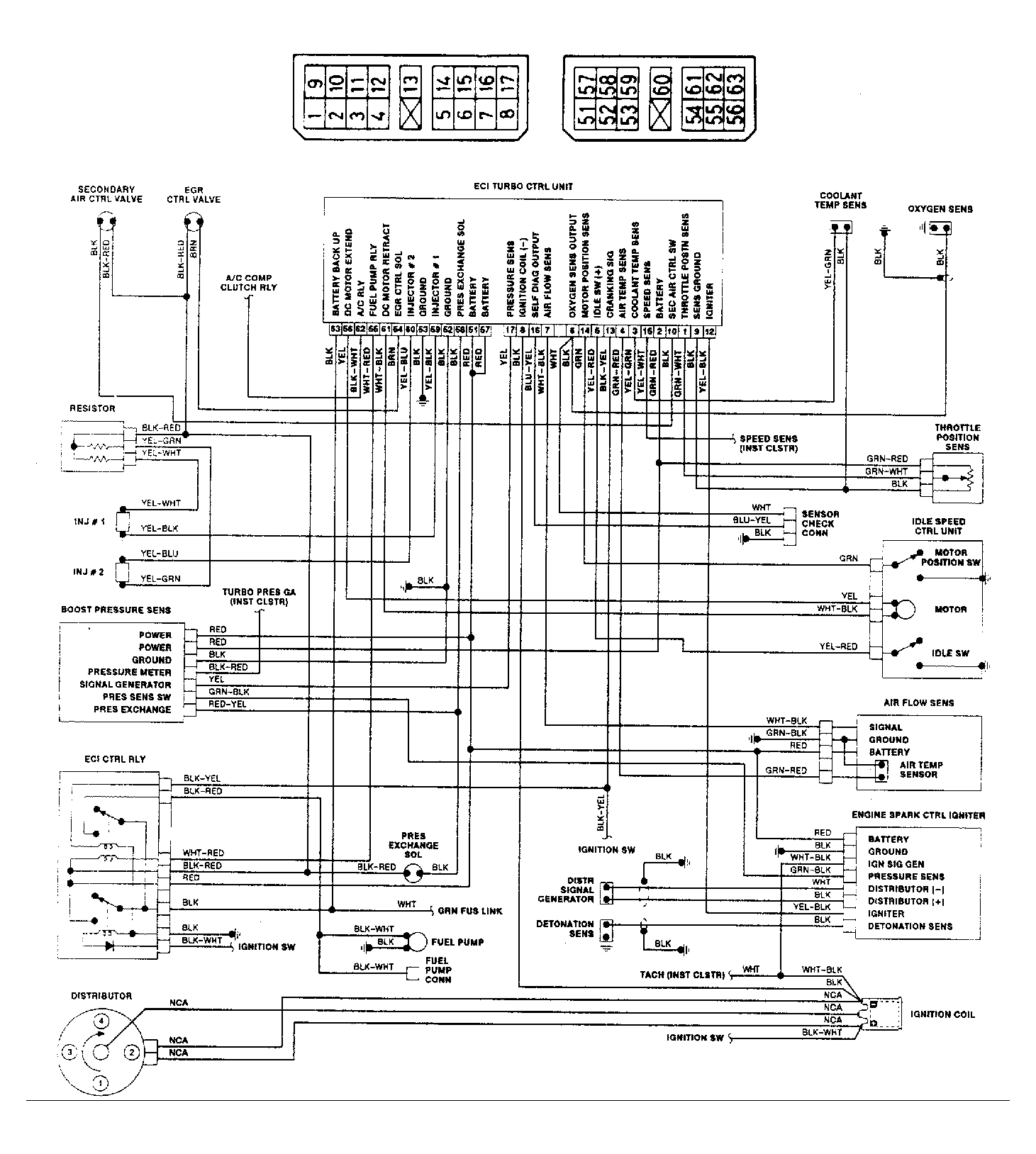

Fig 2: Wiring Diagram for Cordia & Tredia

G94407

Fig 3: Wiring Diagram for Mirage

G94408
