Mitsubishi
›
1990
›
Eclipse Base, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Power Mirrors
›
Component Testing
›
Electric Remote Control Mirror Switch
Electric Remote Control Mirror Switch

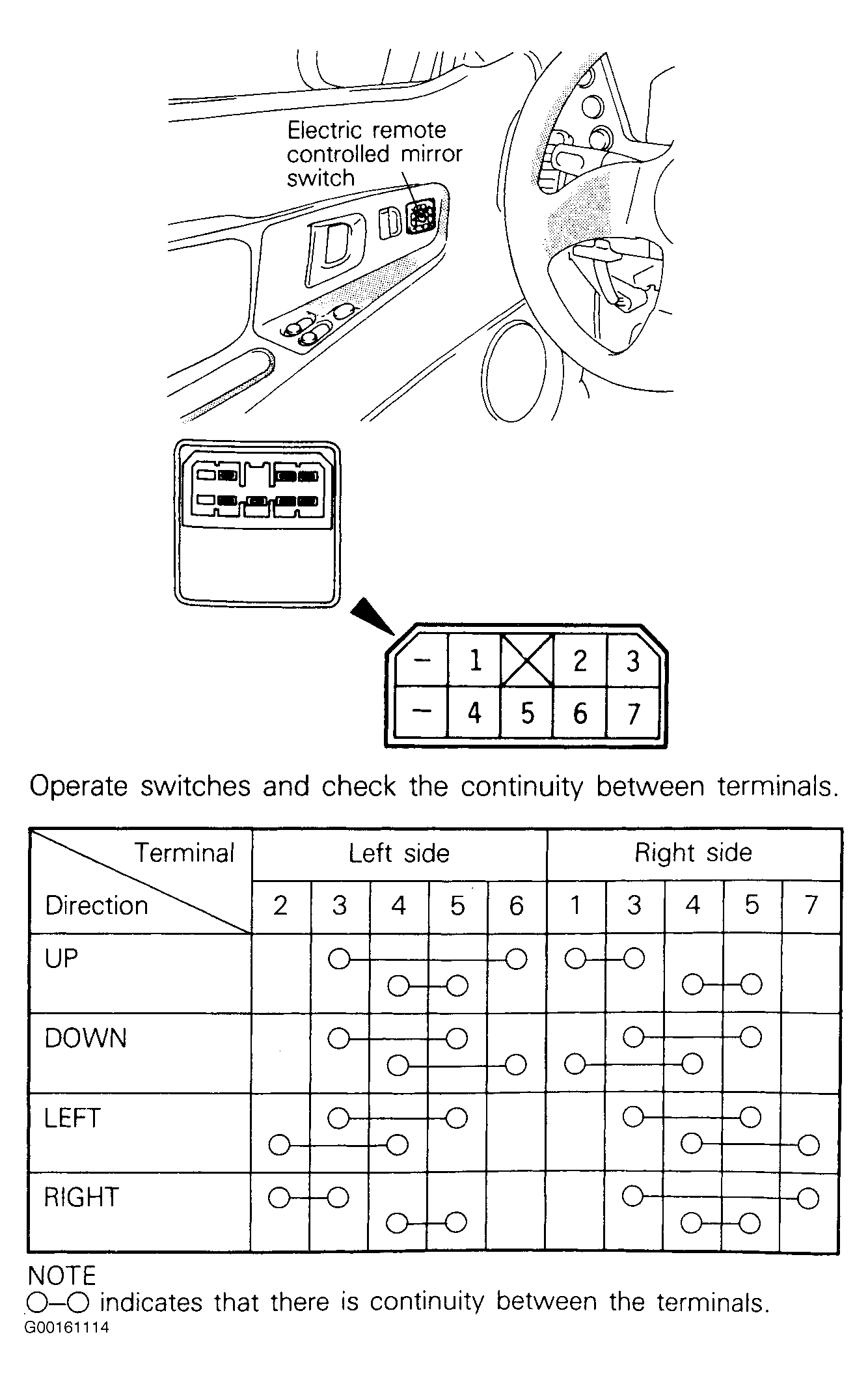

Fig 1: Testing Electric Controlled Mirror Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
