Electric Remote Controlled Mirror Assembly
Electric Remote Controlled Mirror Assembly

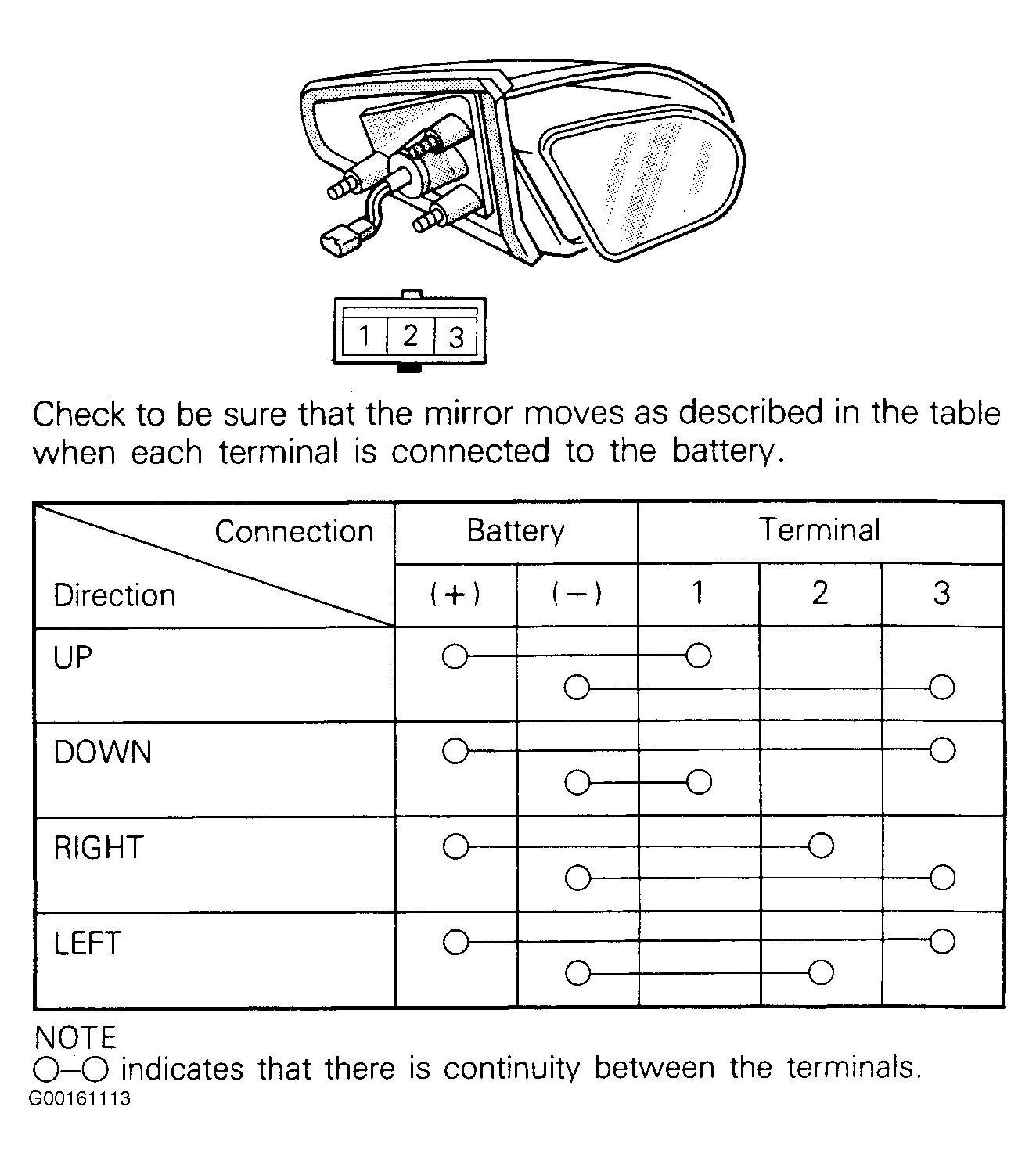

Fig 1: Testing Electric Controlled Mirror Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
