Sensor Inspection

For sensor inspection, see Fig 1 .

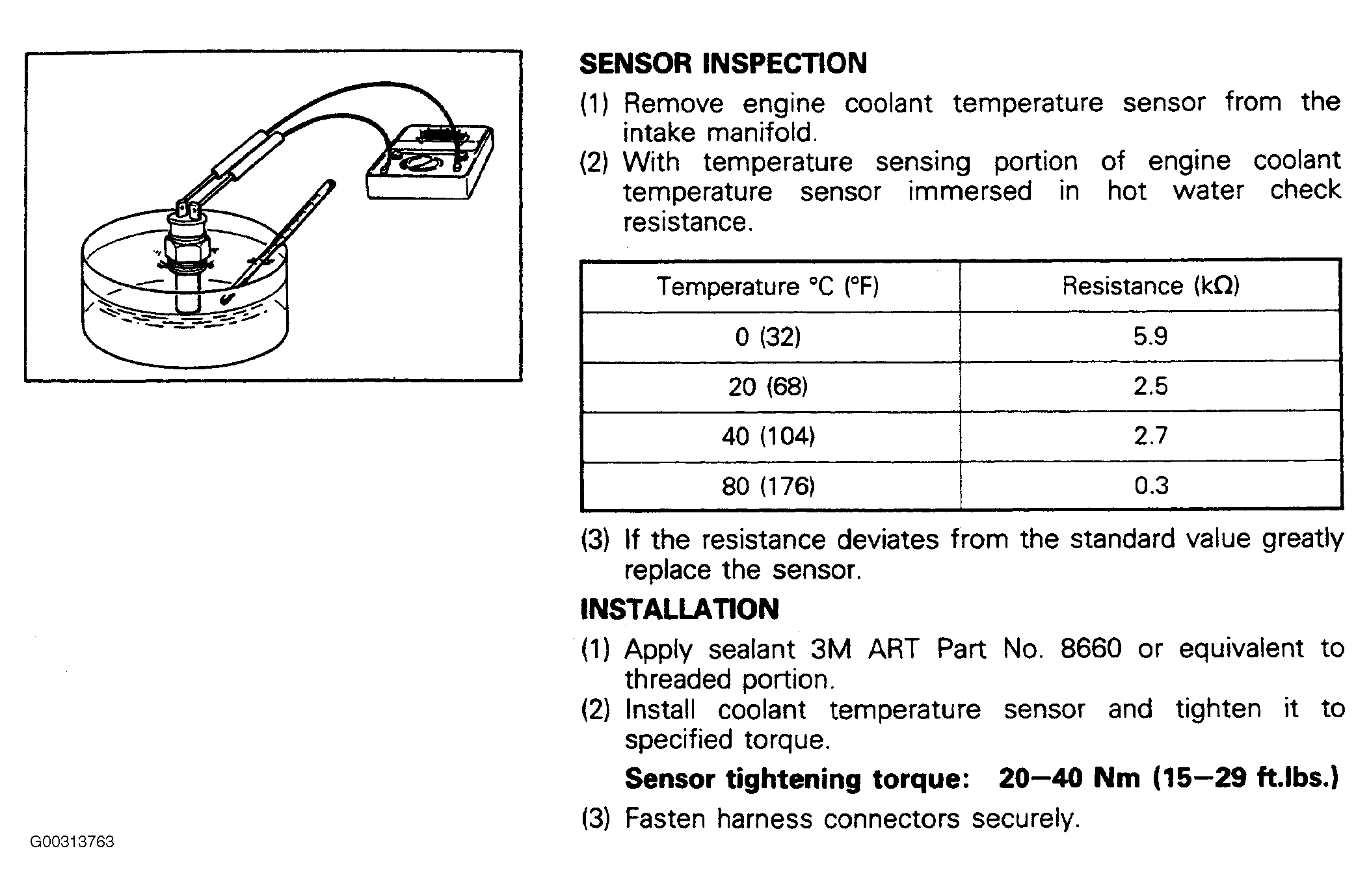

Fig 1: Engine Coolant Temperature Sensor Inspection
G00313763Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
