Harness Inspection

For harness inspection, see Fig 1 . For component locations and connector terminal identification, see Figure .

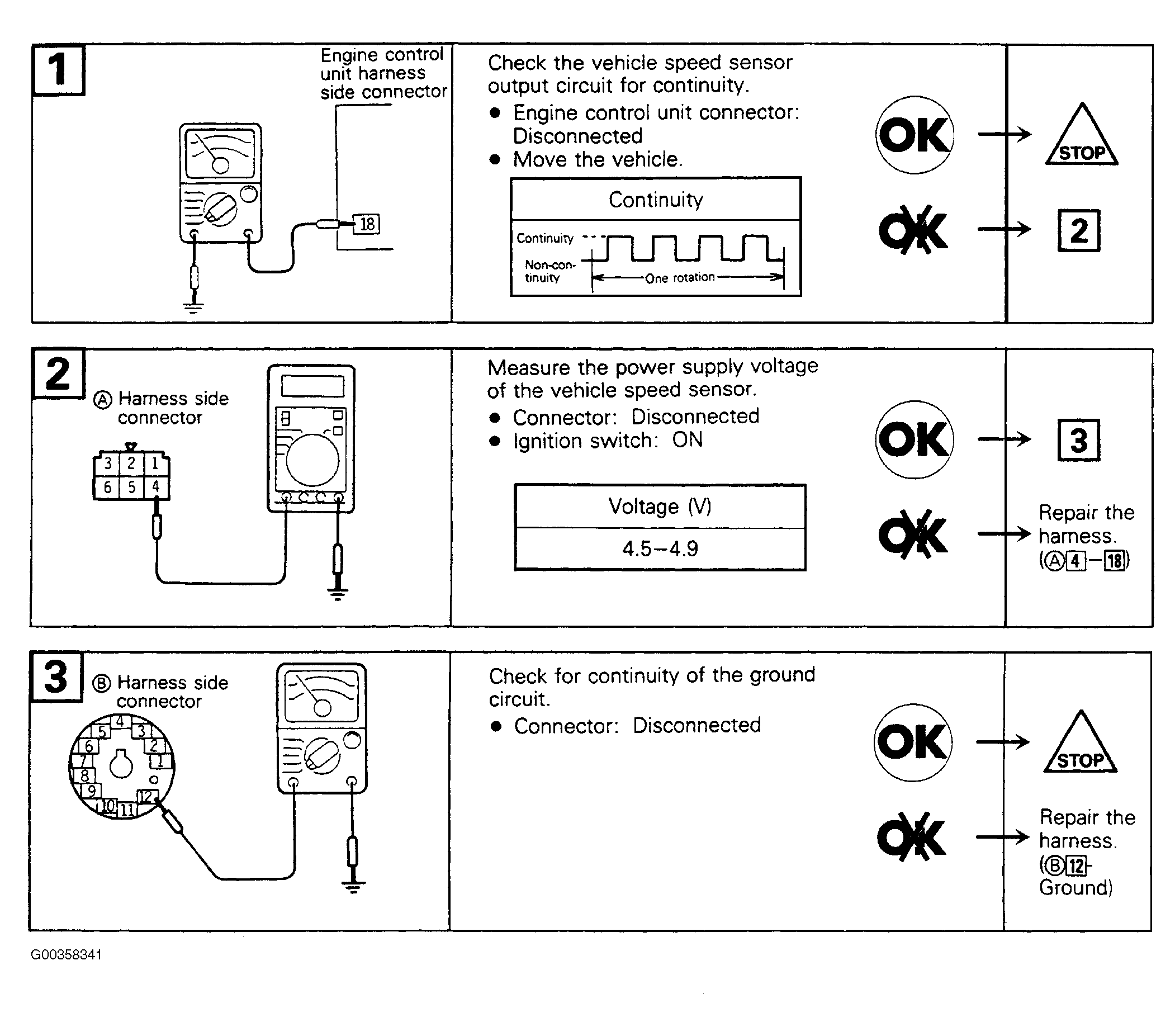

Fig 1: Vehicle Speed Sensor Harness Inspection

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
