Main Switch
Main Switch

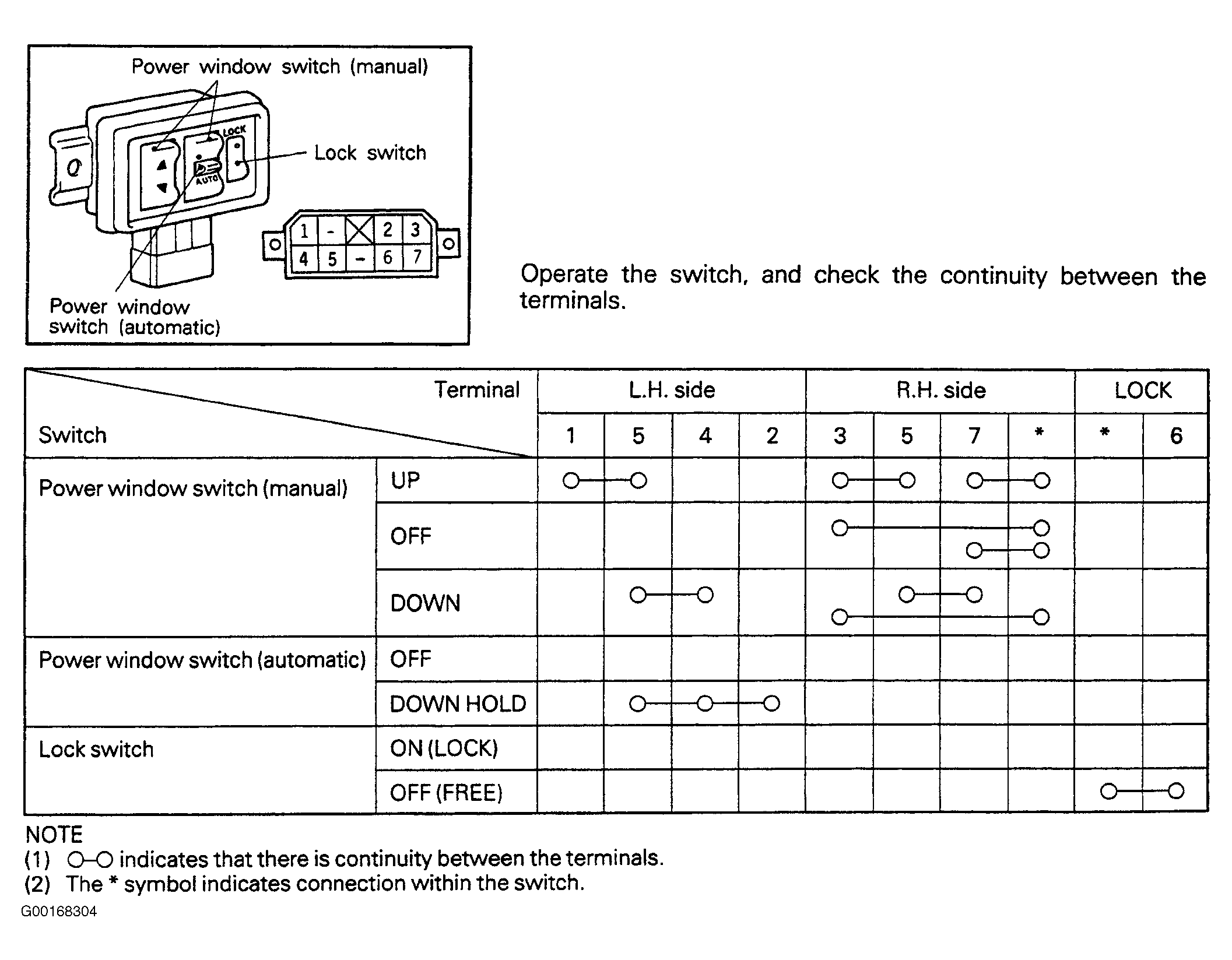

Fig 1: Testing Main Switch (2-Door)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

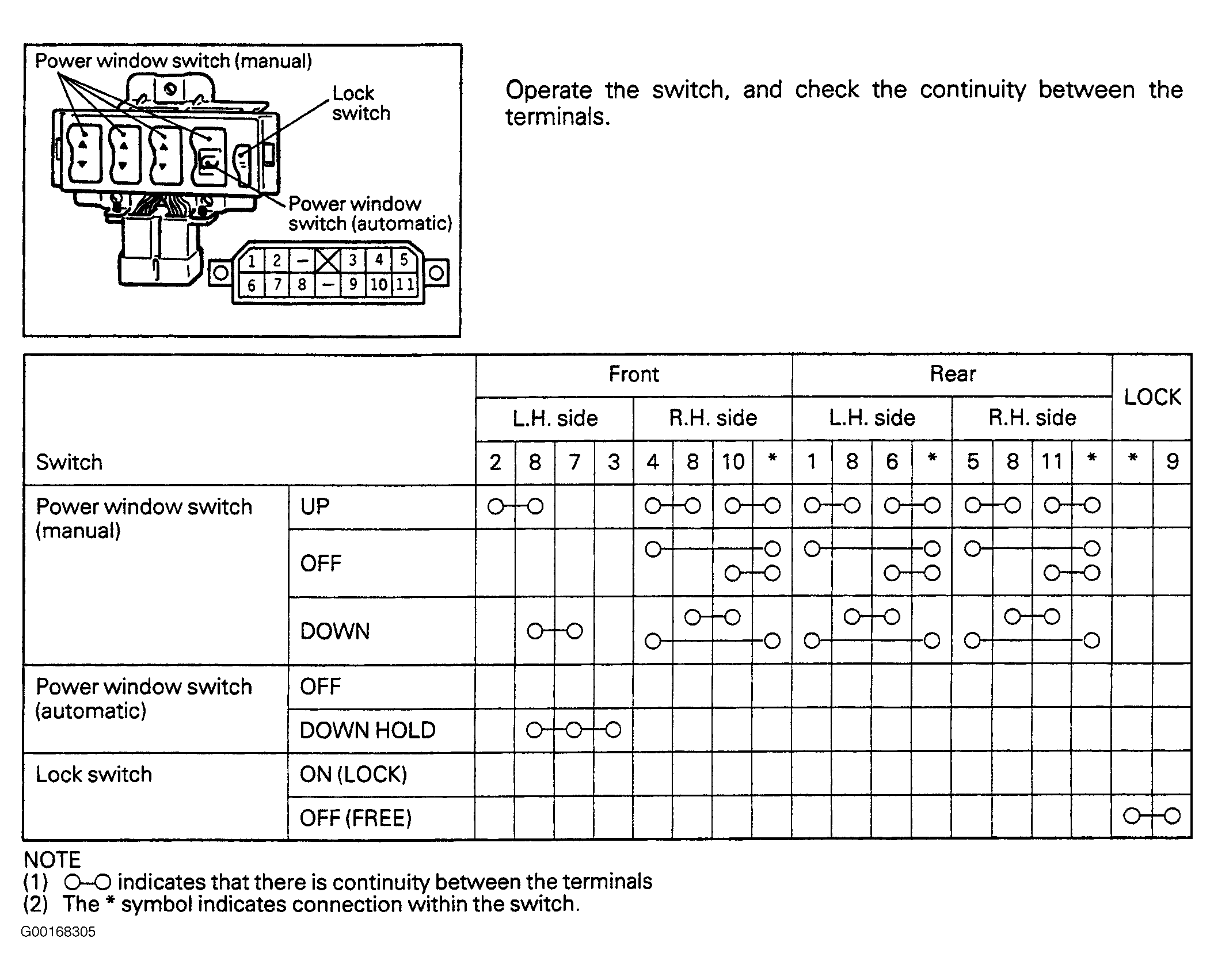

Fig 2: Testing Main Switch (4-Door)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
