Throttle Position Sensor
›
Sensor Inspection
Sensor Inspection
For sensor inspection, see
Fig 1
.

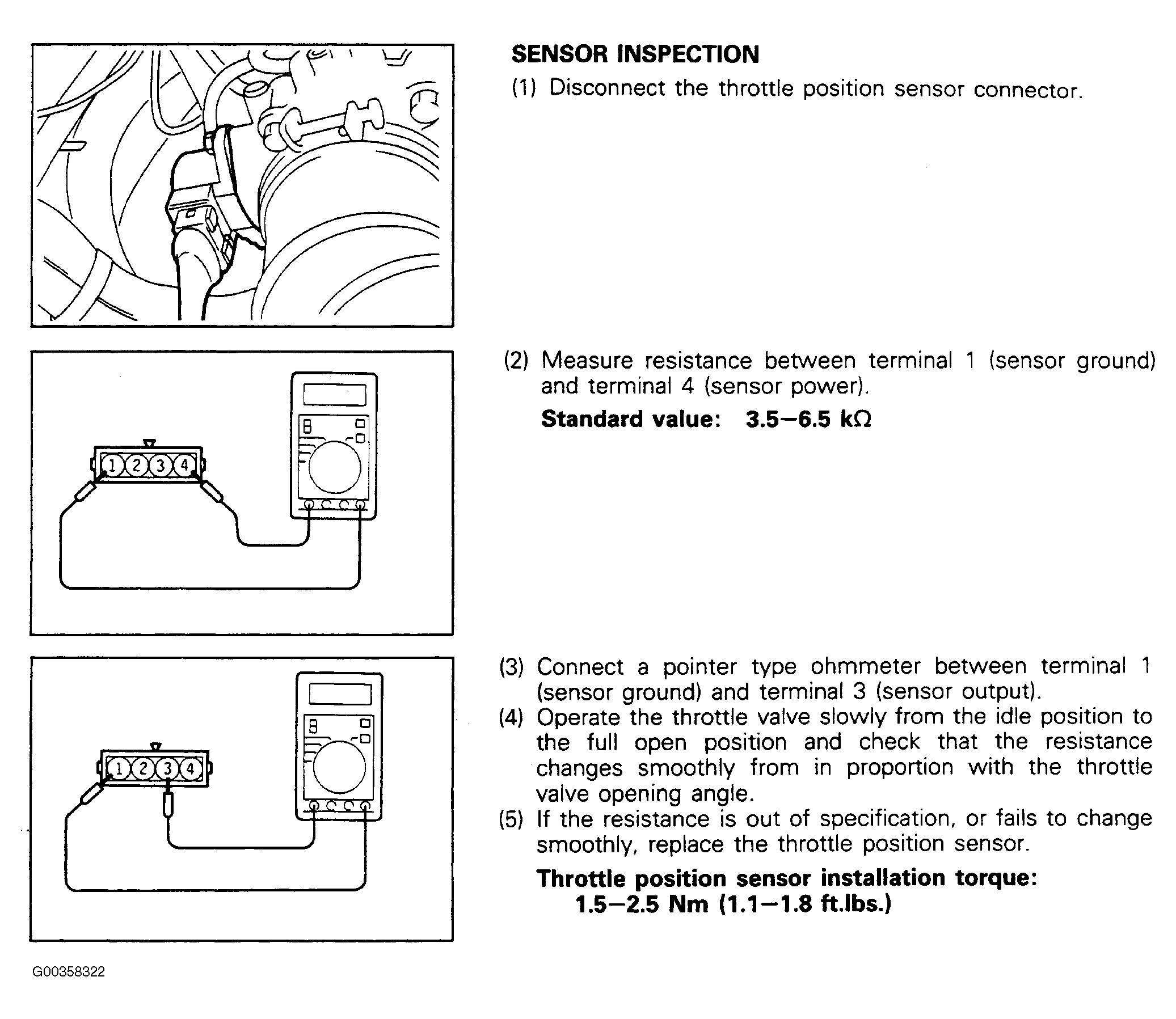

Fig 1: Throttle Position Sensor Inspection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
