Inspection Using Oscilloscope

Run engine at idle speed.
Connect the probe to the oscilloscope pick-up point as shown in the circuit diagram. See Figure . Waveform should be as illustrated. See Fig 1 .

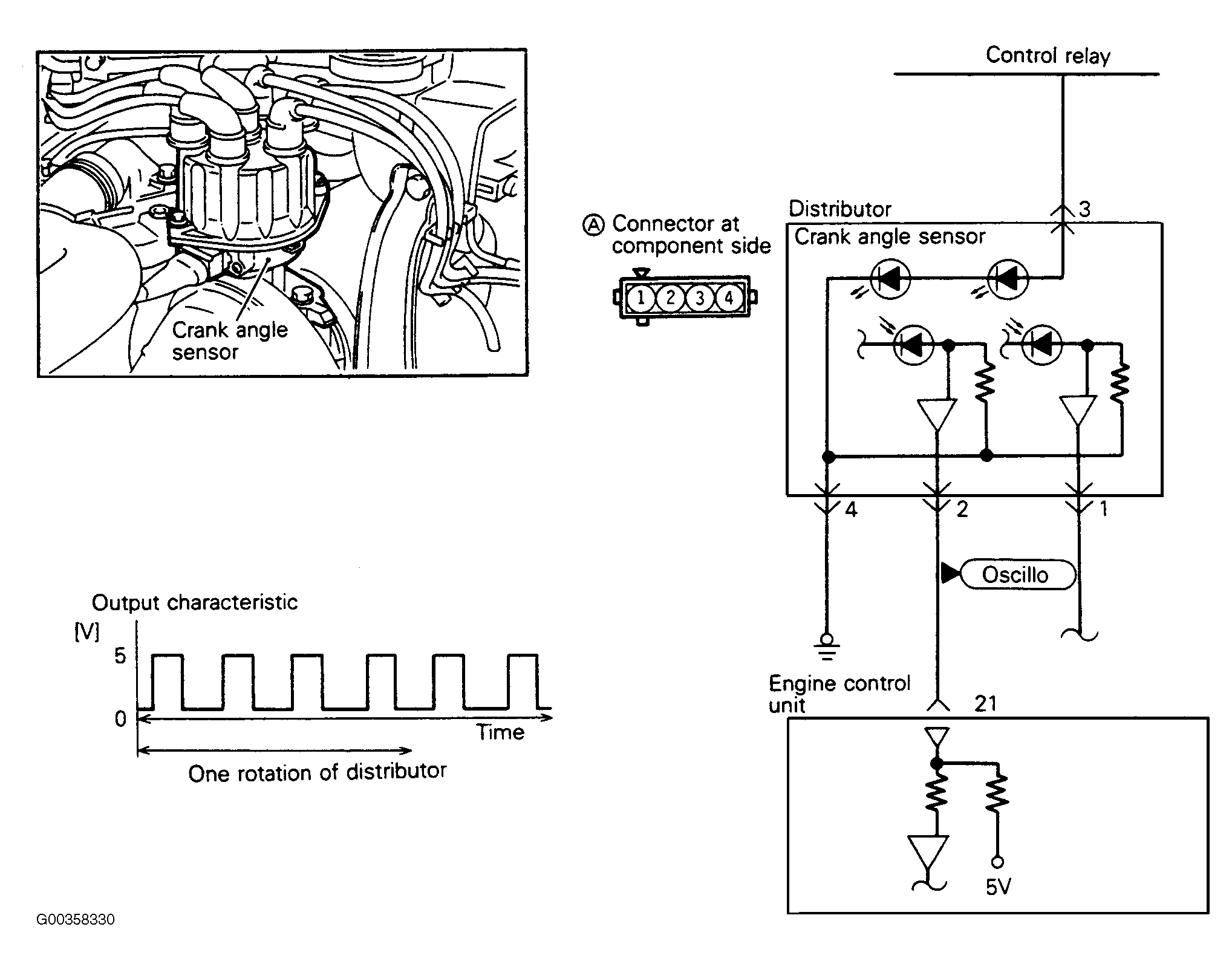

Fig 1: Crank Angle Sensor Waveform

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
