Sensor Inspection

For sensor inspection, see Fig 1 .

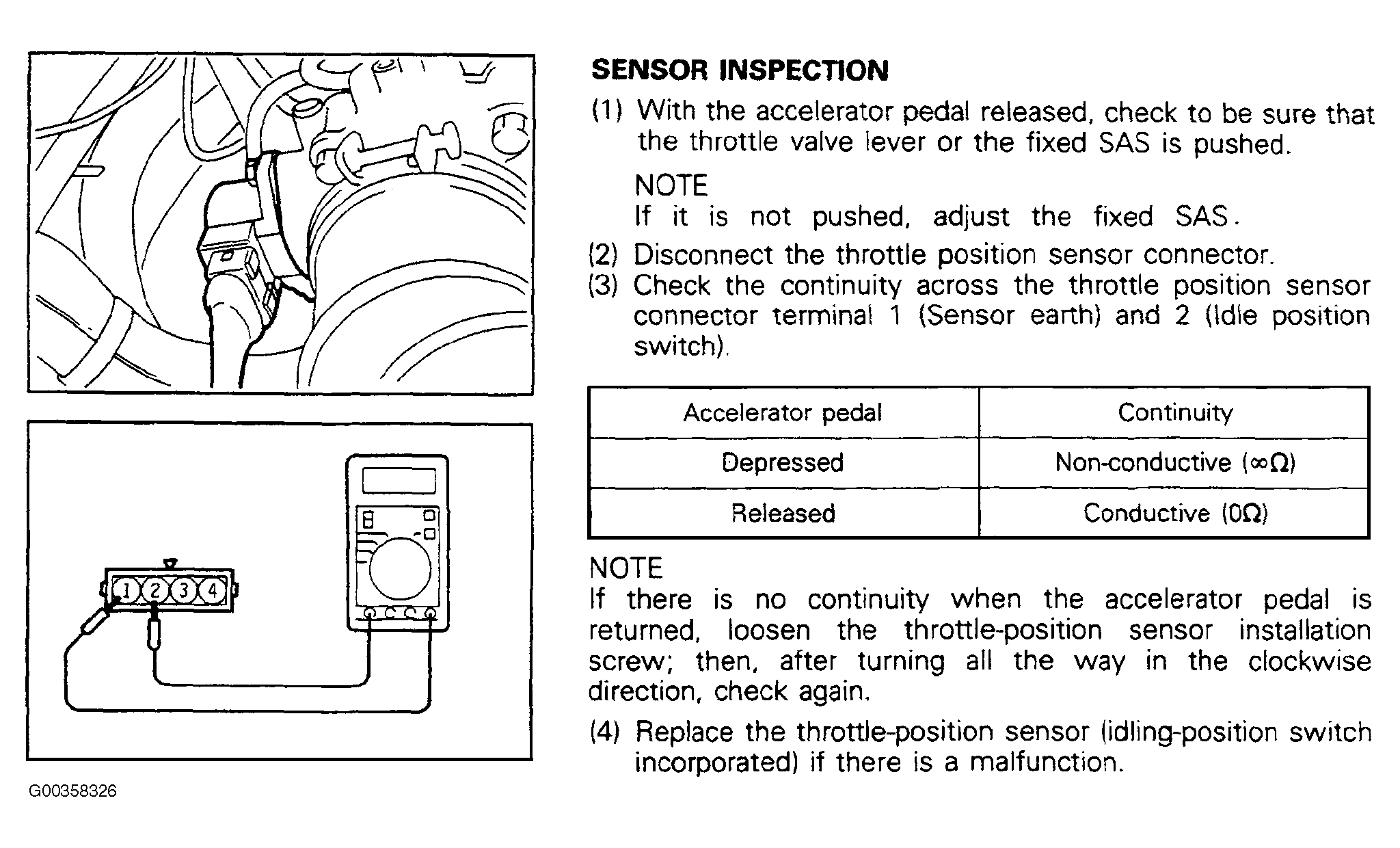

Fig 1: Idle Position Switch Inspection
G00358326Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
