Sensor Inspection

For sensor inspection, see Fig 1 .

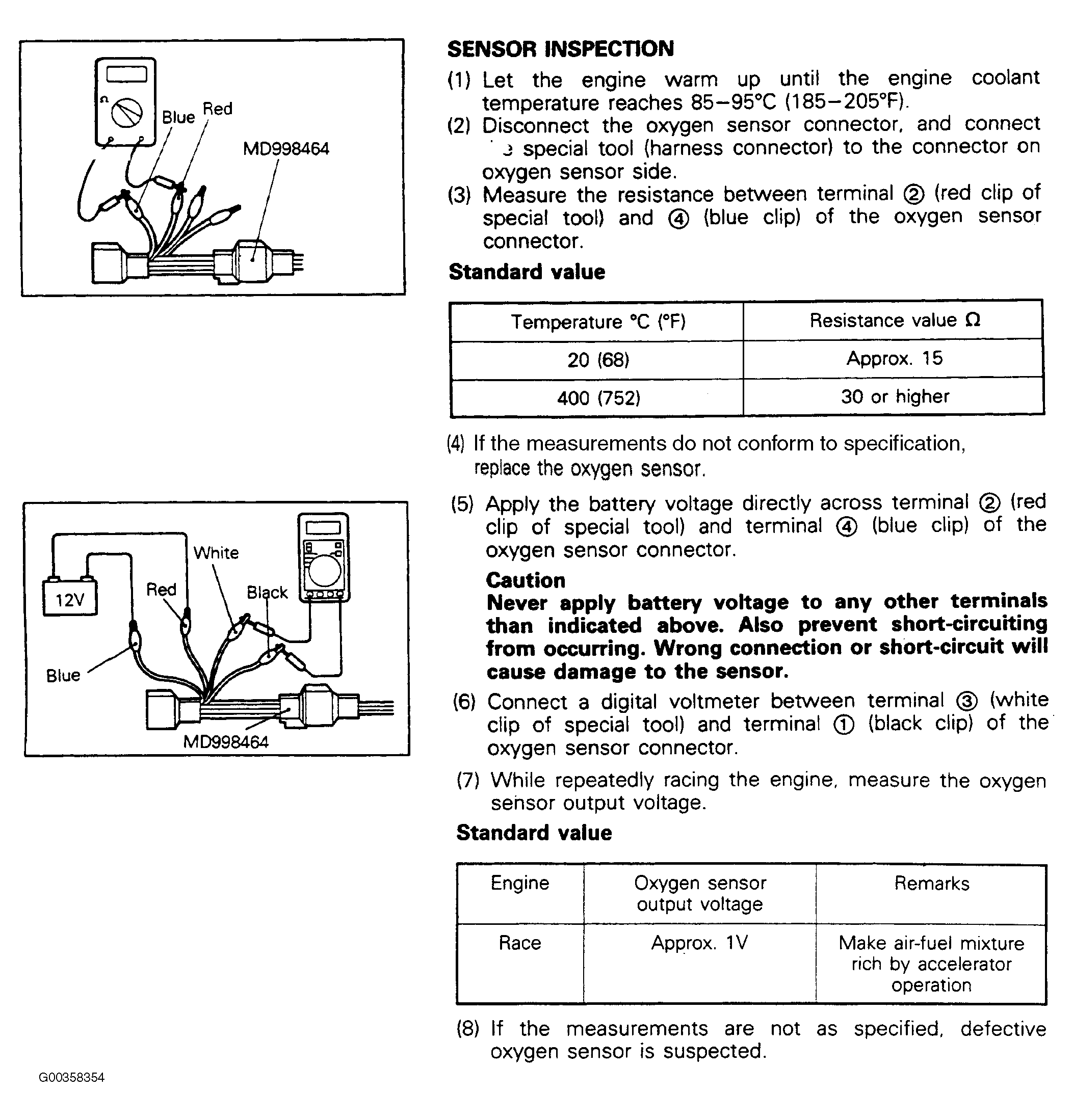

Fig 1: Oxygen Sensor Inspection
G00358354Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
