Home › Mitsubishi › 1990 › Precis Base, Automatic › Repair and Diagnosis › Engine Performance › Wiring Diagrams › Wiring Diagram

Wiring Diagrams: Wiring Diagram

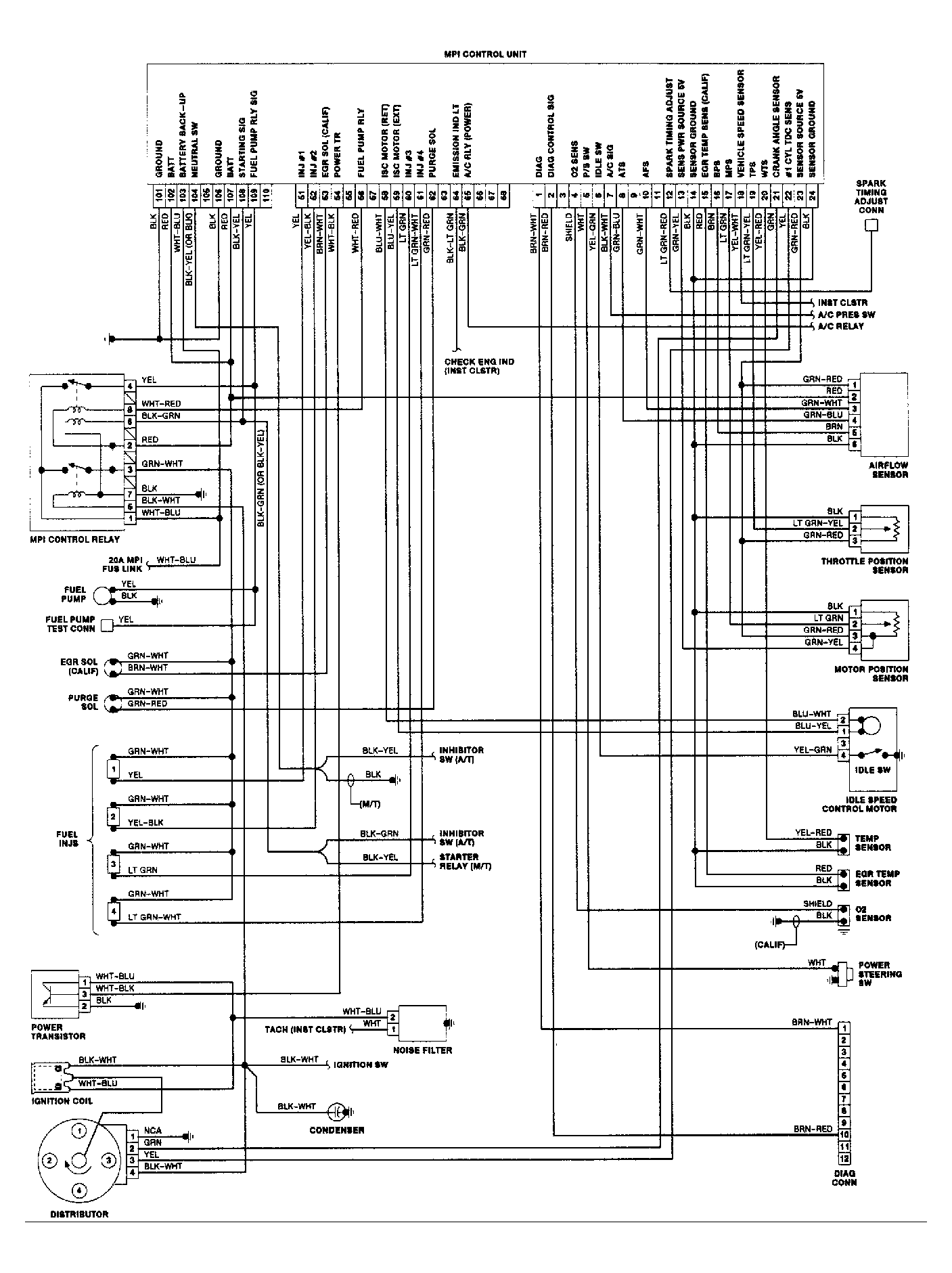

Fig 1: Precis 1.5L Wiring Diagram
G90D21678
