Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When connecting the reservoir hose assembly, do not apply lubricant.
  • No foreign matter should be allowed in the hydraulic unit and hose connection part..

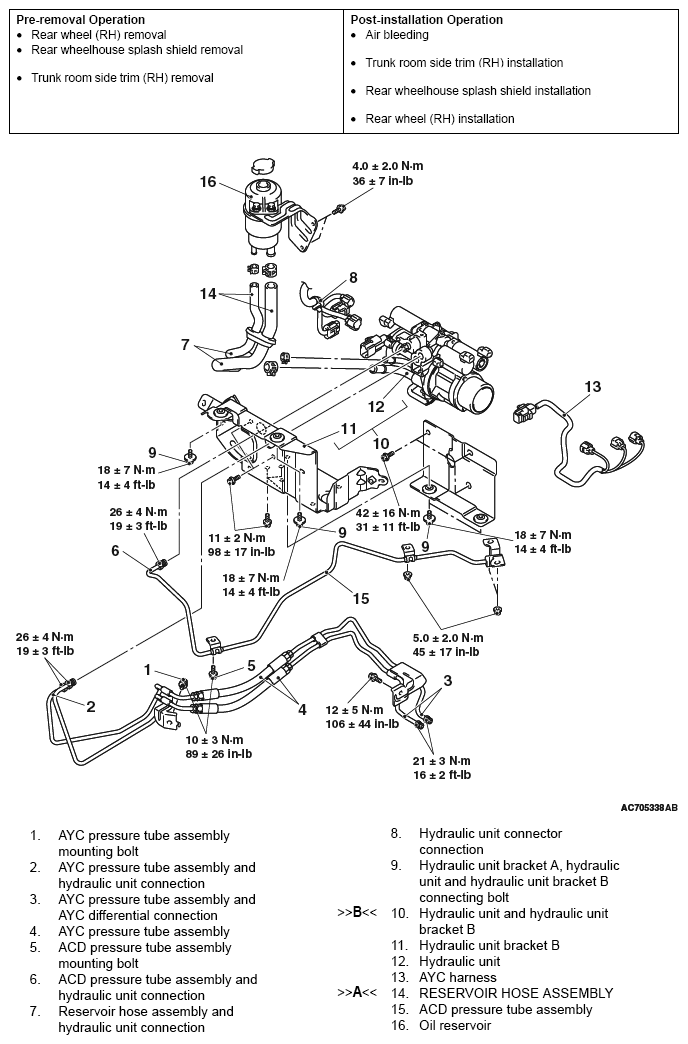

Fig 1: Hydraulic Unit Remove / Install Replacement Components With Torque Specifications
G05394455Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
