Seat Belt Switch

For seat belt switch testing procedure, see Fig 1 .

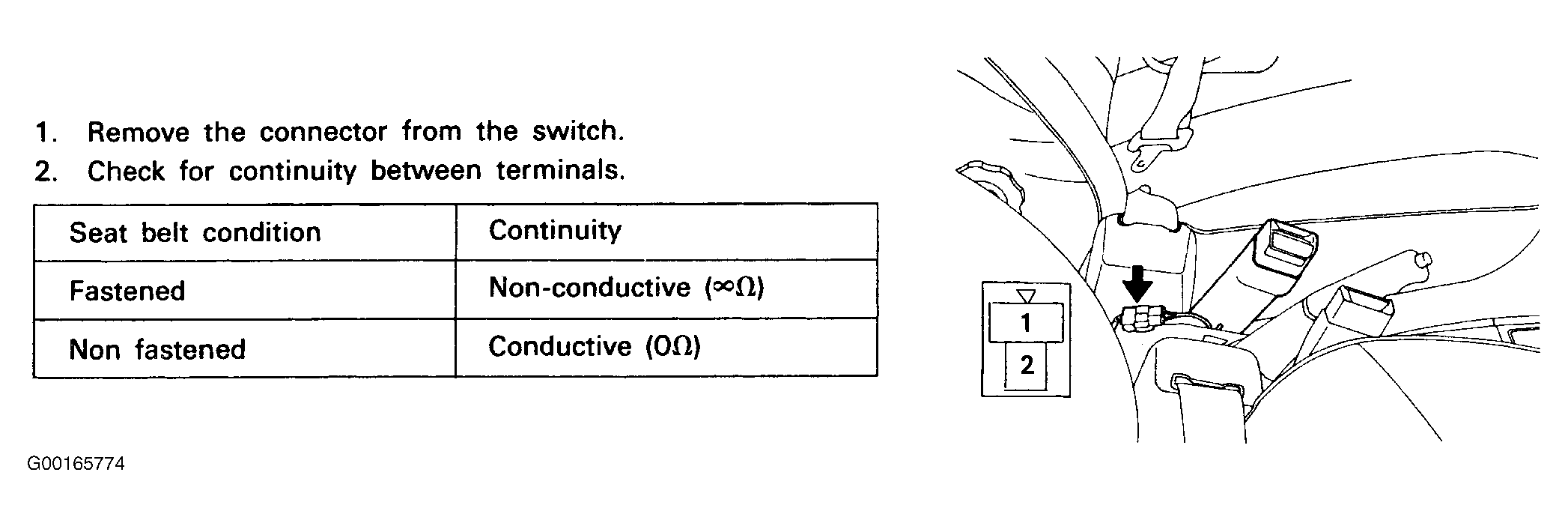

Fig 1: Testing Passive Seat Belt Switch
G00165774Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
