Jacking & Hoisting: OUTERBODY

The points on the outline of the body were designated to be used specifically with the vehicle's own jack. See Fig 1-Fig 4 . If floor jack or hoist is used at these points, use extreme care to avoid damaging outer body shell.

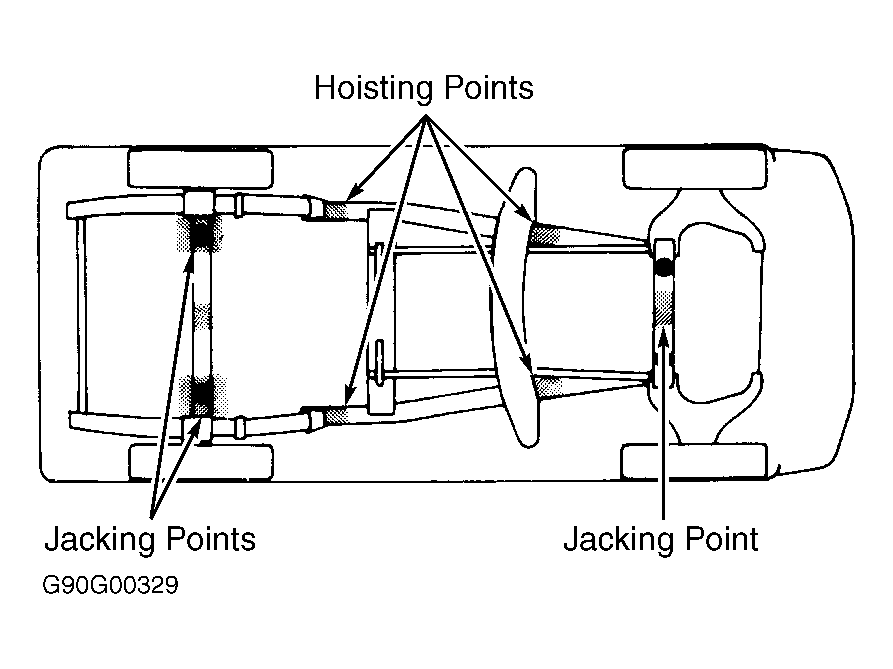

Fig 1: Typical Jacking & Hoisting Points (Sample Illustration)

Fig 2: Jacking & Hoisting Points (Except Montero, Pickup, Van/Wagon) Courtesy of Mitsubishi Motor Sales of America.

Fig 3: Jacking & Hoisting Points (Montero) Courtesy of Mitsubishi Motor Sales of America.

Fig 4: Jacking & Hoisting Points (Pickup & Van/Wagon) Courtesy of Mitsubishi Motor Sales of America.
